Actisense 1 OPTO inputs, 6 ISO-Drive outputs, Serial Port, pluggable screw terminals
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

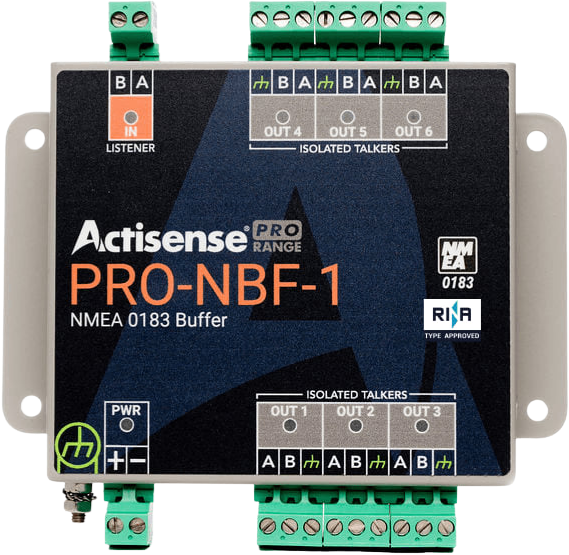

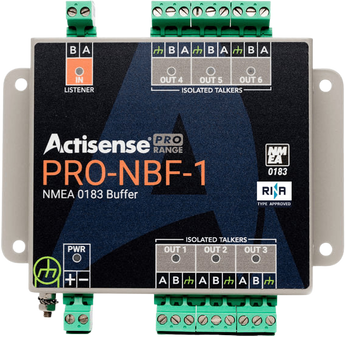

The Actisense PRO-NBF-1 is a RINA type approved NMEA 0183 buffer that safely connects one talker to as many as six listeners. It isolates and buffers the incoming NMEA 0183 data, distributing up to six identical, amplified streams from a single source so that every listener receives data at the required voltage level and consistent quality is maintained across the network.
Isolation on both the input and the outputs protects the source talker and every connected listener. A single OPTO-isolated input and six ISO-Drive isolated outputs let the buffer be wired in with complete peace of mind, eliminating the ground loops that are the leading cause of NMEA 0183 equipment failure. The unit needs no configuration and works with RS422, RS232 and RS485 connections at up to 115200 baud with automatic autobaud detection.
The rugged 316 stainless steel housing also acts as an RF shield, making it an ideal addition to commercial installations. Two-part pluggable screw terminals and a professional DIN rail mounting system make installation quick, and diagnostic LEDs confirm power, input and output activity at a glance.
PRODUCT DETAILS
- Distributes one NMEA 0183 talker to six isolated, amplified listener outputs
- One OPTO-isolated input and six ISO-Drive isolated outputs prevent ground loops
- Compatible with RS422, RS232 and RS485 connections up to 115200 baud
- Automatic autobaud detection means no configuration is required
- Rugged 316 stainless steel housing doubles as an RF shield
- Two-part pluggable screw terminals with professional DIN rail mounting
- Diagnostic LEDs for power, input and output activity
- RINA type approved with 1000V isolation on input and outputs
- PRO-NBF-1 NMEA 0183 buffer
- Two-part pluggable screw terminal connectors
- Mounting screws
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Power
| Input Supply Voltage | 9 to 35 V DC |
| Input Supply Current | 150mA max @ 12V DC (all outputs at full drive into 100 ohm loads) |
| Input Protection | Continuous reverse polarity and ESD protection |
NMEA 0183 Ports
| Listener / Input Ports | One isolated NMEA 0183 Listener |
| Talker / Output Ports | Six isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 115200 bps |
Isolation
| NMEA 0183 Listener | OPTO-Isolated, Hi-Pot tested to 1000V |
| NMEA 0183 Talker | Uses ISO-Drive, Hi-Pot tested to 1000V |
Mechanical
| Housing Material | 316 Stainless Steel |
| Dimensions | 139mm (L) x 128mm (W) x 27mm (H) |
| Weight | 335g |
| Mounting | Bulkhead mount or DIN rail mount (DIN-KIT-1) |
Environmental & Approvals
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 600mm |
| Type Approval | RINA |
| Operating Temperature | -25 to +70 C |
| Storage Temperature | -40 to +85 C |
| Relative Humidity | 95% @ 55 C |
| Environmental Protection | IP40 |
| Guarantee | 5 Years |
