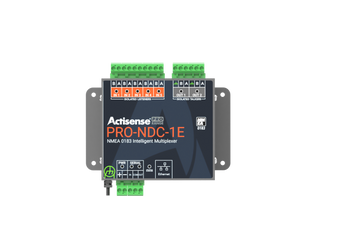

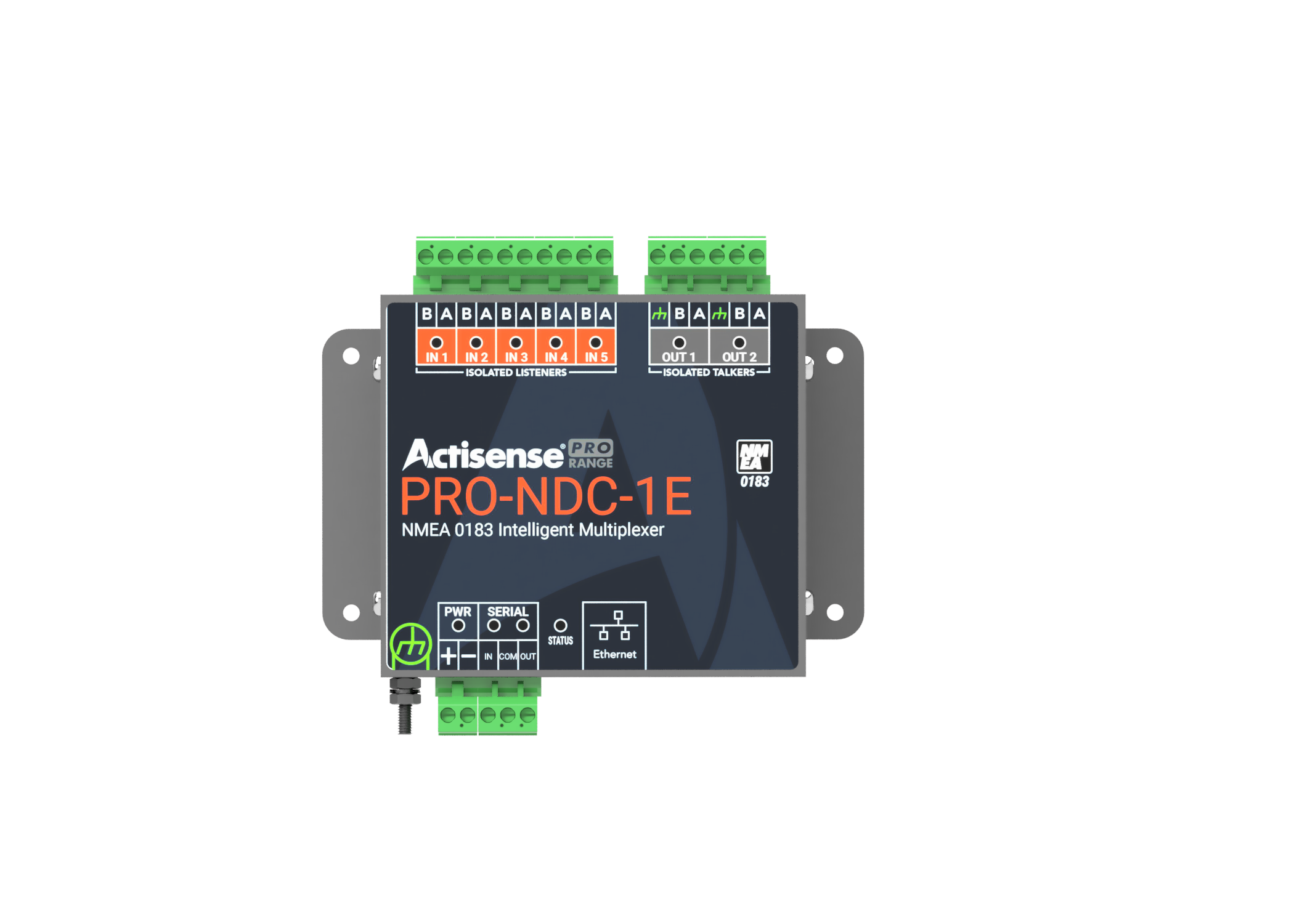

The Actisense PRO-NDC-1E is a RINA type approved NMEA 0183 multiplexer that brings intelligent, robust data handling to any 0183 network. Its five NMEA 0183 inputs can be routed to either of the two NMEA 0183 outputs, creating a highly customisable network, while industry-leading isolation on every input and output protects connected instruments from the ground loops that are the number one cause of NMEA 0183 product failure.
Five OPTO-isolated inputs and two ISO-Drive isolated outputs are complemented by a bi-directional serial port, for communication with a PC using the USBKIT-PRO USB-serial converter, and an Ethernet port for streaming NMEA 0183 data over a network. Configuration is handled by a web-based tool reached through any browser over Ethernet, so there are no operating system compatibility issues, and each output can be fine-tuned with sentence filtering and configurable baud rates that let 4800 and 38400 baud devices share the same multiplexer.
Housed in rugged 316 stainless steel with two-part pluggable connectors and diagnostic LEDs, the PRO-NDC-1E mounts to a bulkhead or, with the optional DIN-KIT-1, to a DIN rail.
PRODUCT DETAILS
- Five OPTO-isolated NMEA 0183 inputs routable to either of two ISO-Drive outputs
- Bi-directional isolated serial port plus NMEA 0183 over Ethernet
- Web-based configuration tool works in any browser with no OS restrictions
- Sentence filtering and configurable baud rates per output
- Automatic baud rate matching on inputs and free firmware updates
- Rugged 316 stainless steel housing with two-part pluggable connectors
- Diagnostic LEDs on all inputs and outputs
- RINA type approved with 1000V isolation throughout
- PRO-NDC-1E NMEA 0183 multiplexer
- Two-part pluggable screw terminal connectors
- Mounting screws
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Power
| Input Supply Voltage | 10 to 35 V DC |
| Input Supply Current | 150mA max @ 12V DC (all outputs at full drive into 100 ohm loads) |
| Input Protection | Continuous reverse polarity, transient overvoltage and ESD protection |
NMEA 0183 Ports
| Listener / Input Ports | 5 isolated NMEA 0183 Listeners |
| Talker / Output Ports | 2 isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 38400 bps |
Serial Port
| Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 115200 bps |
Ethernet Port
| Host Interface | 10/100BaseT, automatic polarity detection |
| Connector | RJ45 |
Isolation
| NMEA 0183 Listener, Talker & Serial | Uses ISO-Drive, Hi-Pot tested to 1000V |
| Ethernet Port | OPTO-Isolated, Hi-Pot tested to 1000V |
Mechanical
| Housing Material | 316 Stainless Steel |
| Dimensions | 139mm (W) x 98mm (H) x 26mm (D) |
| Weight | 360g |
| Mounting | Bulkhead mount or DIN rail mount (DIN-KIT-1) |
Environmental & Approvals
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 300mm |
| Type Approval | RINA |
| Operating Temperature | -25 to +70 C |
| Storage Temperature | -40 to +85 C |
| Relative Humidity | 95% @ 55 C |
| Environmental Protection | IP40 |
| Guarantee | 5 Years |
