Maretron
PRESSURE TRANSDUCER 0 TO 3 PSI
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron PT-0-3PSI-01 is a low-range gauge-type pressure transducer that senses pressure over a 0 to 3 PSI (0.21 bar) range and passes the reading to a Maretron FPM100 Fluid Pressure Monitor. The FPM100 converts the signal into NMEA 2000 data, so the pressure or calculated tank level can be viewed on any compatible display aboard.
Its low range makes it well suited to tank-level monitoring, where a transducer mounted at the base of a tank measures the head of fluid above it. This allows accurate level sensing in deep or irregularly shaped tanks. It works with water, waste water, diesel, oil, hydraulic fluid and other compatible media.

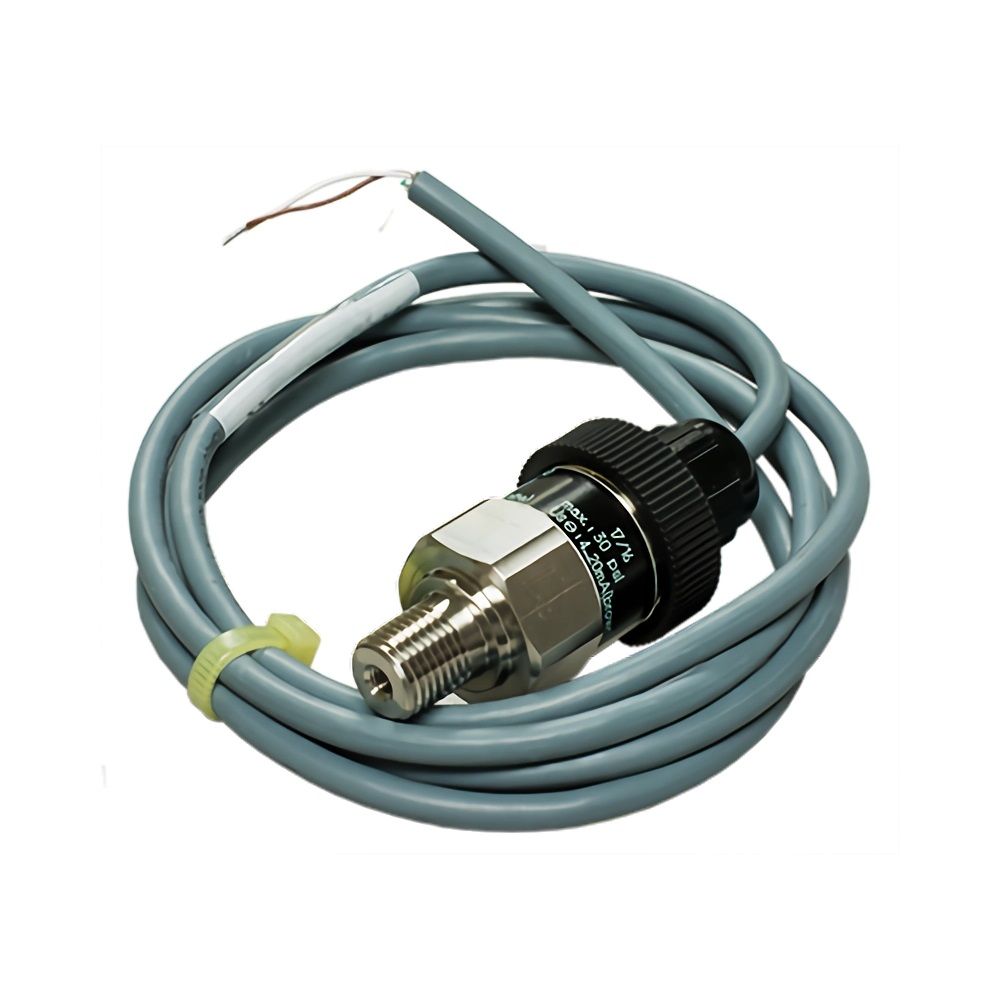

A stainless steel body with a ceramic sensing element and a 1/4 inch NPT male fitting allow direct mounting into the system or tank. Where pressure spikes may occur, fit a PT-SNUB-01 pressure snubber first. Not approved for use with petrol or gasoline.
PRODUCT DETAILS
- Measures 0 to 3 PSI (0.21 bar) gauge pressure
- Ideal for tank-level sensing via head of fluid
- Feeds data to the FPM100 for NMEA 2000 monitoring
- Stainless steel body with ceramic sensing element
- 1/4 inch NPT male thread for direct tank or system mounting
- 4-20mA current-loop, loop-powered output
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Performance
| Pressure Range | 0 to 3 PSI (0.21 bar) |
| Sensor Type | Gauge |
| Accuracy | +/-2% Full Scale |
| Maximum Over Pressure | 29 PSI (2 bar) |
Electrical
| Output | 4 to 20 mA current loop, loop powered |
| Excitation Voltage | 9 to 30 VDC |
Mechanical
| Thread | 1/4 inch NPT male |
| Construction | 303 stainless steel, thick film on ceramic Al2O3 sensor |
| Cable | IP67 PVC, 1.5 m (4.9 ft) |
| Weight | 110 g |
Environmental
| Operating Temperature | -5 C to 60 C |
| Media Temperature | -25 C to 125 C |
