Simrad
PUMP-3,12V Hydraulic, 1.6L
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

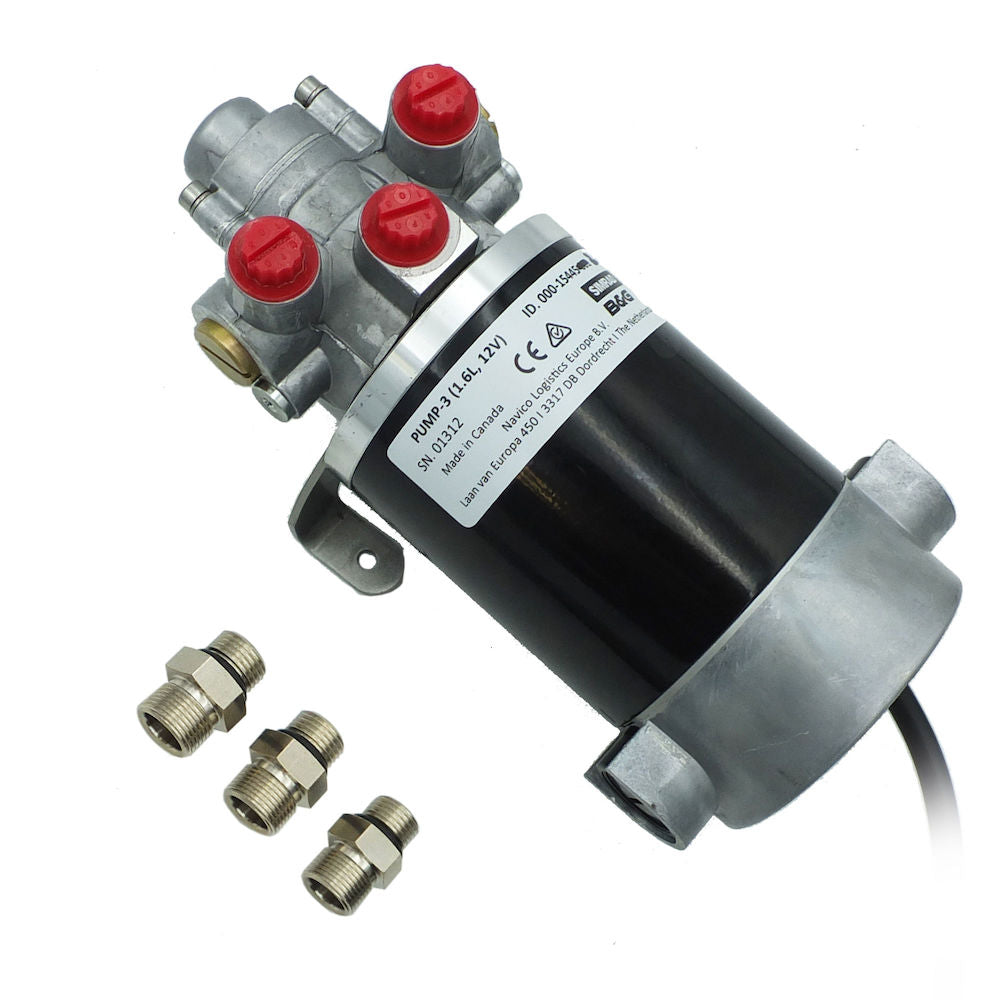

The Simrad PUMP-3 is a reversible hydraulic steering pump for boats up to 50 ft, working with the NAC-3 (or AC42) autopilot computer to drive the vessel's hydraulic steering as part of a complete autopilot system. The 12 V DC gear pump delivers a flow rate of 1.6 litres (98 cu in) per minute and is rated for hydraulic cylinder displacements between 160 and 550 cc.
It uses O-Ring Boss (ORB) connections and is supplied with three ORB-5 to 9/16 UNF fittings for straightforward plumbing into existing hydraulic steering. The PUMP-3 is SteadySteer compatible, allowing the helm to override automatic steering naturally when fitted to a suitable system.
PRODUCT DETAILS
- 12 V reversible hydraulic gear pump for boats up to 50 ft
- Flow rate 1.6 L/min for cylinder displacements of 160 to 550 cc
- O-Ring Boss (ORB) connections, includes 3 x ORB-5 to 9/16 UNF fittings
- Works with the NAC-3 / AC42 autopilot computer
- SteadySteer compatible
- Quiet, efficient hydraulic steering output
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Mechanical
| Type | Reversible hydraulic gear pump |
| Flow rate | 1.6 L (98 cu in) / min |
| Cylinder displacement range | 160 - 550 cc (9.8 - 33.5 cu in) |
| Connections | O-Ring Boss (ORB); includes 3 x ORB-5 to 9/16 UNF fittings |
Electrical
| Voltage | 12 V DC |
General
| Recommended boat length | Up to 50 ft |
| Compatibility | Requires NAC-3 / AC42 autopilot computer; SteadySteer compatible |
| Warranty | 2 years |
Physical
| Weight | 2.6 kg |
