Navico
PUMP-5, 24V Hydraulic, 3.0L
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

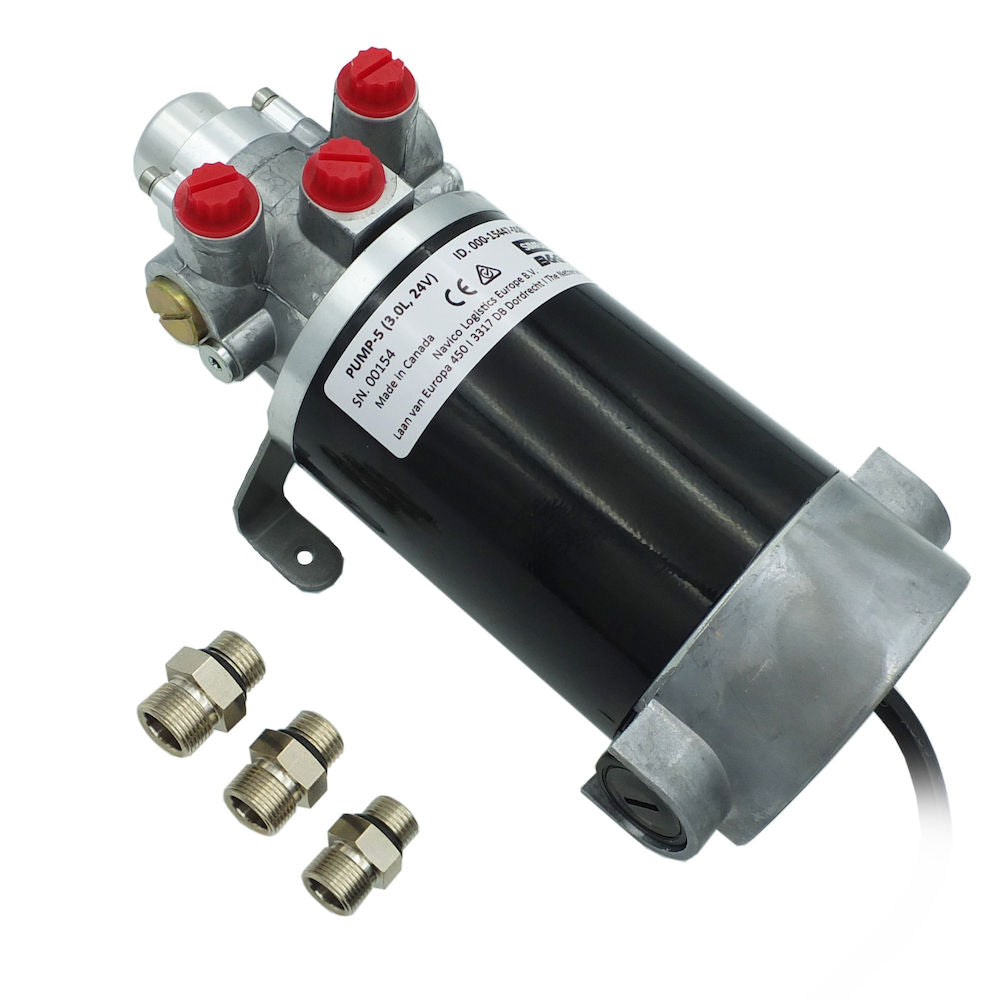

The Simrad PUMP-5 is a 24V DC reversible hydraulic gear pump for autopilot steering, delivering 3.0 litres per minute (183 cui). It suits hydraulic cylinders with a displacement of 290 to 960 cc (17.7 to 58.5 cu. in.) and uses O-Ring Boss connections, shipping with three ORB-5 to 9/16 UNF fittings. It is SteadySteer compatible and works as part of an autopilot system with a NAC-3 or AC42 computer.
PRODUCT DETAILS
- 24V DC reversible hydraulic gear pump
- 3.0 L/min (183 cui) flow rate
- For cylinder displacement 290-960 cc (17.7-58.5 cu. in.)
- O-Ring Boss (ORB) connections with 3x ORB-5 to 9/16 UNF fittings
- SteadySteer compatible; requires NAC-3 / AC42
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Reversible hydraulic gear pump |
Electrical
| Supply voltage | 24 V DC |
Performance
| Flow rate | 3.0 L/min (183 cui) |
Compatibility
| Cylinder displacement | 290-960 cc (17.7-58.5 cu. in.) |
Connections
| Fittings | O-Ring Boss (ORB); includes 3x ORB-5 to 9/16 UNF |
