Actisense NMEA 2000 Network Block, 6 micro female drops, power feed and diagnostic features

Fault-free, NMEA 2000® backbone connections.

The QNB-1 and QNB-1-PMW provide alternatives to multiple connectors, reducing the cost of an NMEA 2000 cable installation. Perfectly suited to areas of high instrument density, as six drops can be connected.

The QNB-1 is available in two versions:

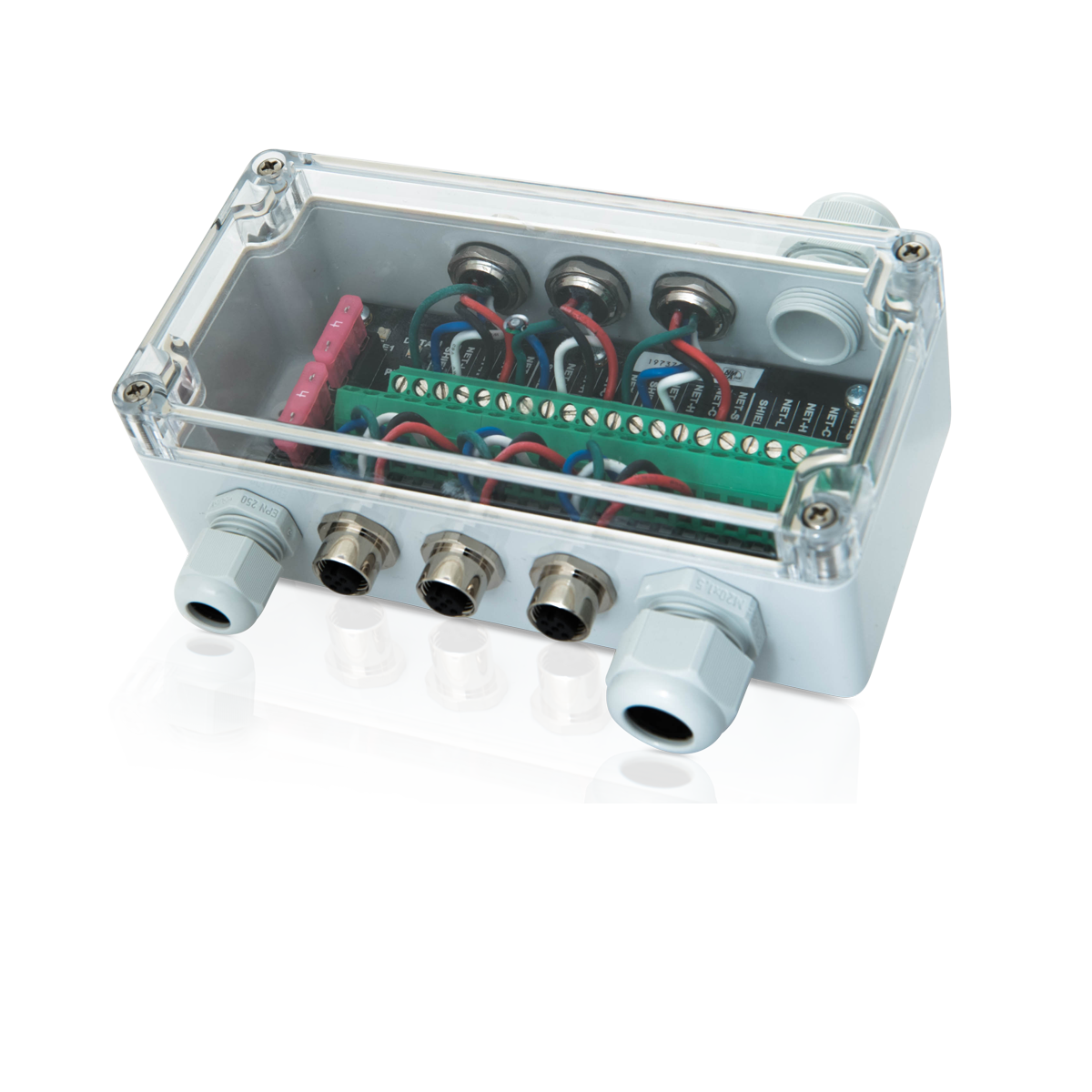

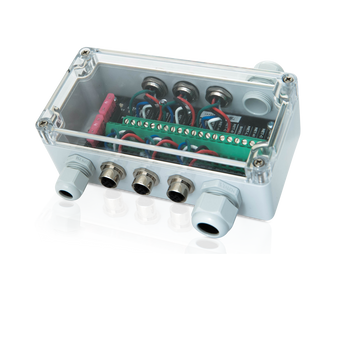

The QNB-1-PMW version is fitted with six standard NMEA 2000 M12 (Micro-fit) female connectors which allow ‘plug and play’ connections for quick and easy installation. A Raymarine STNG backbone can be wired to one side of the QNB-1 to combine standard NMEA 2000 with STNG without the need for adapter cables.

The QNB-1 version is fitted with glands to allow for installation of custom lengths of cable. This is a great option for ‘mix & matching’ standard NMEA 2000 devices with Raymarine STNG devices.

The LEDs provide information for the installer during set up and to indicate the presence of data, power status, power reversal and to show whether the fuses are intact.
