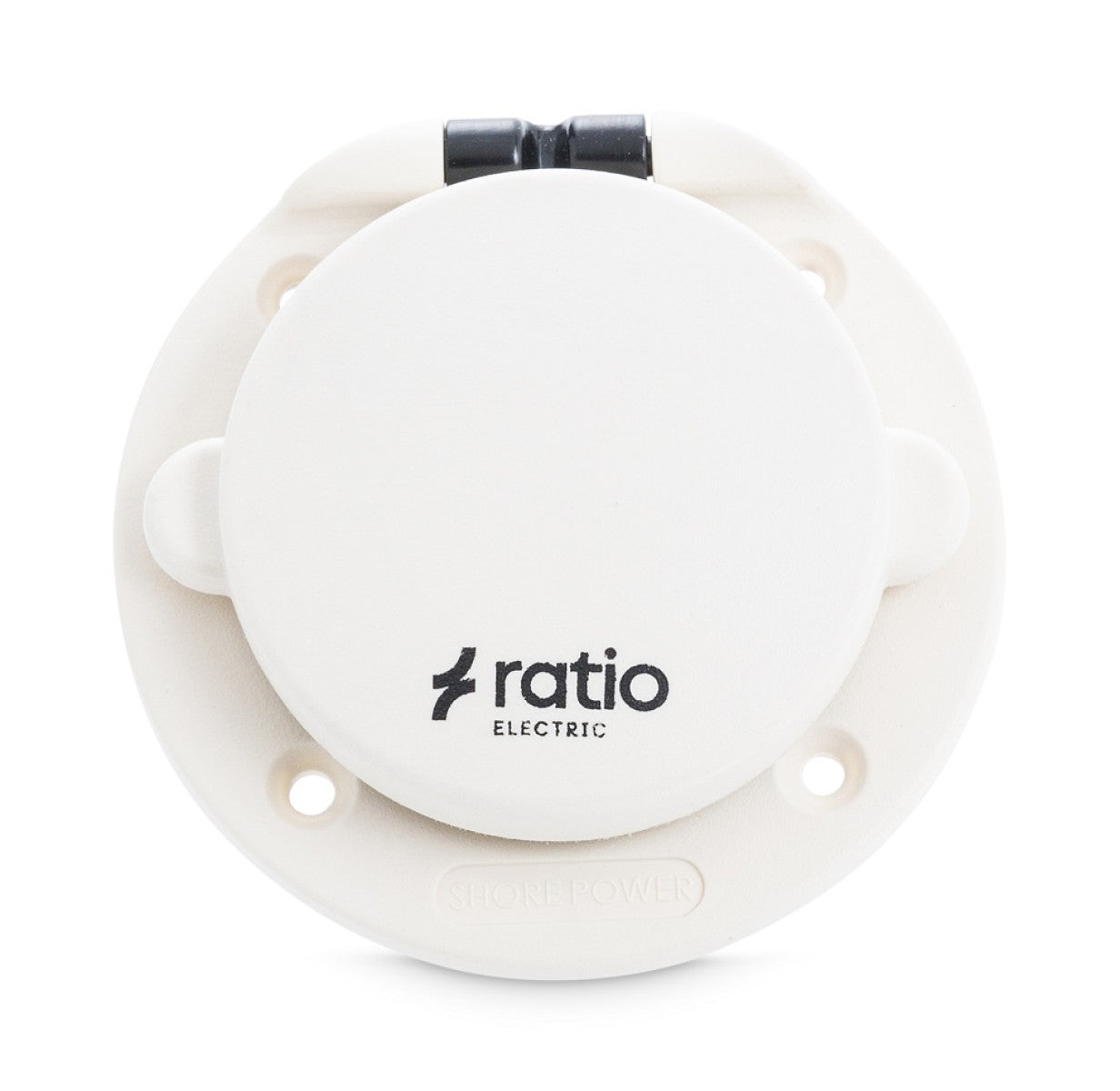

Ratio Glass filled Nylon 6 Polymer shore power inlet. 2P+E. 240v 16A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Ratio MP16-10-K is a 16A shore power inlet moulded from high quality polyamide PA6, offering a lightweight and durable alternative to the stainless steel version. The glass reinforced plastic housing is naturally resistant to corrosion, making it well suited to salt water environments, and its clean white finish sits neatly on the hull. With an IP56 rating it is protected against dust and powerful jets of water for reliable use on the water.
The inlet is built to the ISO 13297 standard for electrical systems on pleasure craft, and a bayonet lock keeps the shore cord firmly connected. The three pole layout carries live, neutral and earth, while screwed terminals make wiring simple during installation. Light to handle and easy to maintain, it pairs with a Ratio MP16 shore power cordset or a matching MP16 assembly plug.
PRODUCT DETAILS
- Rated 16A at 250V for a single phase shore power supply
- Lightweight polyamide PA6 housing that resists corrosion
- Clean white finish for a discreet appearance
- IP56 rated against dust and strong water jets
- Bayonet locking connection keeps the shore cord secure
- Built to ISO 13297 with three pole screwed terminals
No exploded diagram available for this product.
No compatible transducers listed for this product.
Ratio coupler for Ratio shorepower inlet. 16A 250v
Shore cord Set - 3 core - 1.5mm - 10A - 15m
Shorecord Set - 3 core - 1.5mm - 10A - 25m
Shore cord Set - 3 core - 2.5mm - 16A - 15m
Shorecord Set - 3 core - 2.5mm - 16A - 25m
Shorecord Set - 3 core - 2.5mm - 16A - 5m
Shore cord extension cable - 3 core - 2.5mm - 16A - 15m
Shore cord extension cable - 3 core - 2.5mm - 16A - 25m
No compatible products found.
Electrical
| Rated current | 16 A |
| Rated voltage | 250 V |
| Number of poles | 3 (2P + E) |
| Connection system | Screwed terminal |
Construction
| Construction type | Recessed mounted device inlet |
| Material | Polyamide PA6 (thermoplastic) |
| Finish | Polyamide PA6 |
| Colour | White (RAL 9001) |
| Protection rating | IP56 |
| Halogen free | Yes |
General
| Standard | ISO 13297 |
| Certification | CE |
| Brand | Ratio Electric |
| Manufacturer part number | MP16-10-K |
