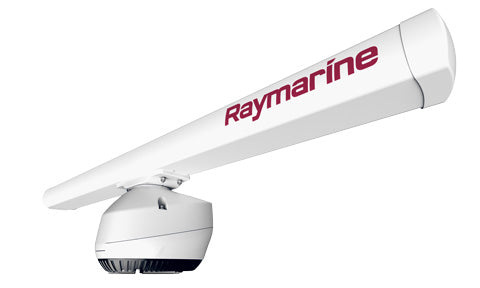

Raymarine 4kW Magnum Radar with 6ft Open Array and 15m RayNet Radar Cable
Manufacturer Part Number:
T70410
Manufacturer Part Number:
T70410
Raymarine Magnum is a high performance open array radar bringing long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements. Pack includes 4kW pedestal, 6 foot open array, VCM100 and 15 meter cable.
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine 4kW Magnum Radar with 4ft Open Array and 15m RayNet Radar Cable
Raymarine 4kW Magnum Radar with 6ft Open Array and 15m RayNet Radar Cable
Raymarine 12kW Magnum Radar with 4ft Open Array and 15m RayNet Radar Cable
Raymarine 12kW Magnum Radar with 6ft Open Array and 15m RayNet Radar Cable
Raymarine Magnum Radar Navigation
Parts supplied (pedestal and VCM100)
1. Pedestal x 1
2. Mounting template x 1
3. Denso paste x 1
4. Lifting sling x 1
5. Stud x 4
6. Plain washer x 4
7. Spring washer x 4
8. Nut x 8
9. Cable tightening tool x 1
10. Radar-to-RayNet & power’ cable (15 m) x 1
11. VCM100 mounting screw x 2
12. VCM100 cable clamp mounting screw x 3
13. VCM100 Voltage Converter Module x 1
14. VCM100 cable clamp x 1
Parts supplied (antenna)
1. Antenna (4 ft or 6 ft — 4 ft illustrated) x 1
2. Threaded alignment guide x 4
3. Plain washer x 4
4. Spring washer x 4
5. Nut x 4
Maximum rotation
Center of rotation
