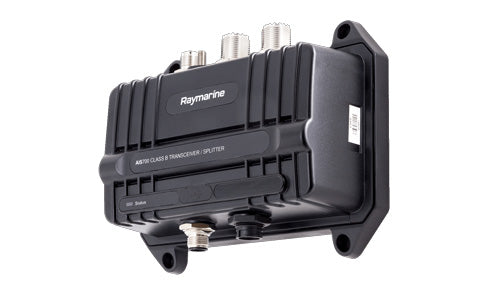

Raymarine AIS700 Class B Transceiver With Integrated Splitter
Manufacturer Part Number:
E70476
Manufacturer Part Number:
E70476
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.
Home or Marina Delivery
Pick up at Hamble
More Information
AIS Navigation
Parts supplied
1. AIS700
2. GNSS antenna
3. Power/data cable 2m (6.56 ft)
4. VHF Radio cable 1m (3.28 ft)
5. DeviceNet to SeaTalkng ® adaptor cable 1m (3.28 ft)
6. GNSS antenna gasket
7. GNSS antenna pole mount
8. Unit fixings (4 x No.8x19 self tapping screws)
9. M5 nut and washer (grounding)
10. Documentation
11. GNSS antenna fixings (3 x M3x40 stud and thumb
nut)
12. Software CD
ENVIRONMENTAL SPECIFICATIONS
| Operating temperature | -15°C to +55°C |
| Storage temperature | -20°C to +75°C |
| Water ingress | IPX6 and IPX7 |
| Humidity | Up to 93% @ 40°C |
POWER SPECIFICATIONS
| Power Supply | 12v and 24 nominal |
| Power Consumption | <3W |
| Peak current | 3A |
| Load Equivalency Number | 1 LEN |
RF SPECIFICATIONS
| DSC Receiver | Implemented by time sharing with one TDMA receiver |
| Receiver 1 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Receiver 2 band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Transmitter band | 156.025 MHz to 162.025 MHz (in 25KHz steps) |
| Transmitter specification | To meet IEC 62287-2 relevant sections |
| Receiver specification | To meet IEC 62287-2 relevant sections |
| Transceiver specification | To meet IEC 62287-2 relevant sections |
| GPS receiver | u-blox MAX-M8W |
| GPS receiver channels | 72 channels |
| GPS Cold start acquisition time | 26s nominal |
| Positional source | GPS & GLONASS |
| AIS performance | 5W SOTDMA |
ANTENNA SPLITTER SPECIFICATIONS
| Operating frequency range | 156.0MHz to 162.025MHz Transmitting 156.0MHz to 174.0Mhz Receiving |
| Insertion loss AIS RX path | 0dB |
| Insertion loss AIS TX path | <1dB |
| Insertion loss VHF RX path | 0dB |
| Insertion loss VHF TX path | <1dB |
| Power handling AIS port | Maximum 5W input |
| Power handling VHF port | 25W input |
| Switching time RX to VHF TX | 10uS Max |
| Switching time RX to AIS TX | 10uS Max |
| Switching time VHF TX to AIS TX | 10uS Max |
| Switching time any TX to RX | 10uS Max |
| VHF port impedance | 50 Ohms |
| AIS port impedance | 50 Ohms |
| Antenna port impedance | 50 Ohms |
| VHF to AIS port isolation | >28dB (both directions) |
| Minimum VHF input power for switching | 400mW |
EXTERNAL CONNECTIONS
| VHF antenna connector type | SO-239 co-axial |
| VHF radio connector type | SO-239 co-axial |
| GNSS antenna connector | 50Ω TNC co-axial |
| NMEA2000 | DeviceNet male |
| USB | Micro-B |
| External interface isolation | NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification. |
| NMEA0183 interface 1 (MFD connection) | NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS. |
| NMEA0183 interface 2 (NMEA0183 instrument connection) | NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate |
| USB interface (PC connection) | Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud |
