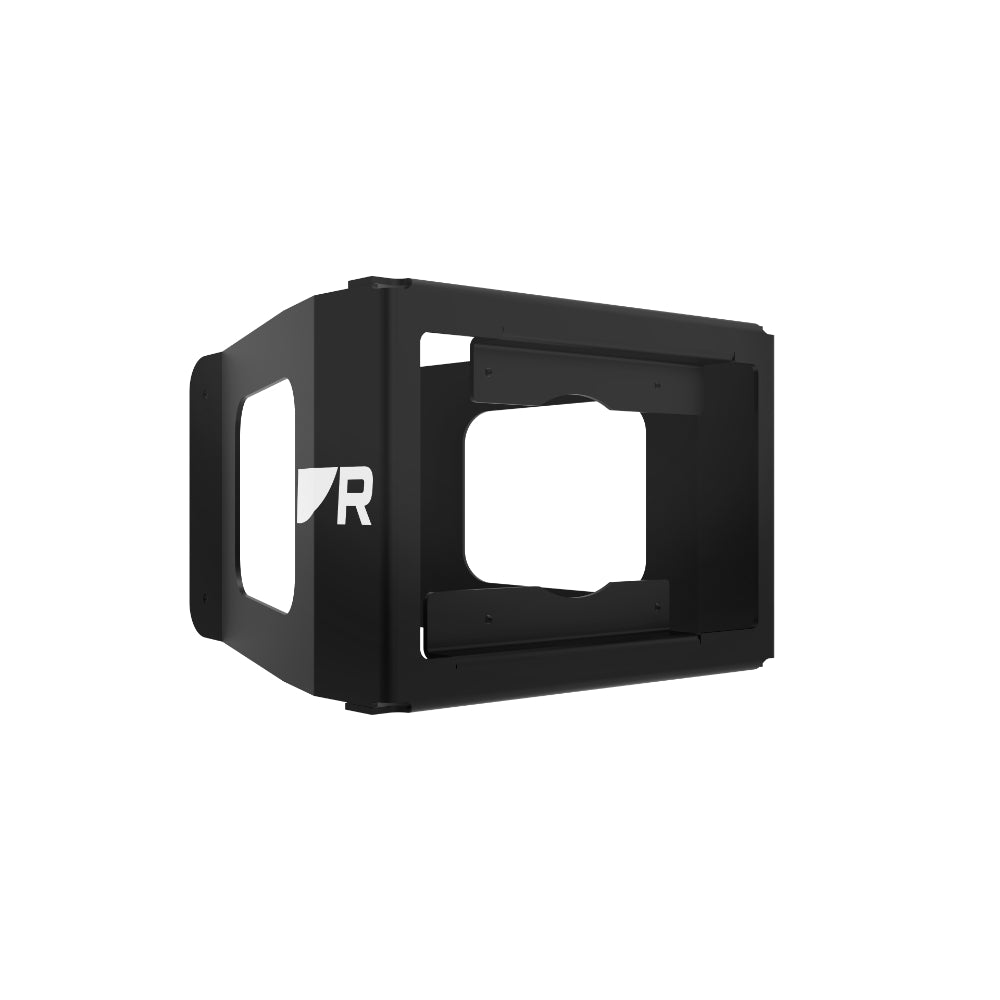

Raymarine Alpha 9 Single Mast Bracket (Landscape)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This single landscape mast bracket (A80714) puts an Alpha 9 display right where a racing crew looks for numbers: on the mast. It fits mast diameters from 120 mm (4.72 in) up to 210 mm (8.27 in), and the aluminium alloy construction keeps it light and stiff.
Brackets for the same display size and orientation stack into arrays using the supplied M5 screws and hexagon rivet nuts, so a bespoke bank of displays can grow one bracket at a time. M4 screws and washers secure the display to the cradle, and P-clips tidy the cabling to the mast; cables can also be routed inside a hollow mast. Raymarine recommends a two person installation: one to hold the display and bracket, one to fix it. Compatible with the Alpha 9 performance display (E70650) only; display and cables are sold separately.
PRODUCT DETAILS
- Single landscape mounting for an Alpha 9 display
- Fits mast diameters 120 mm (4.72 in) min to 210 mm (8.27 in) max
- Lightweight, robust aluminium alloy construction
- Stacks with brackets of the same size and orientation to form arrays
- Display fixings, array fixings and cable P-clips supplied
- For the Alpha 9 performance display (E70650)
- Alpha Series display mast bracket
- Documentation pack
- 2x P-clips
- 4x M4x14 hex socket drive screws
- 4x M4x9 flat washers
- 2x M5x16 hex socket drive screws
- 2x M5x10 flat washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Configuration | Single landscape mast bracket |
| Suitable display | Alpha 9 performance display (E70650) |
| Construction | Lightweight, robust aluminium alloy |
| Mast diameter range | 120 mm (4.72 in) min to 210 mm (8.27 in) max |
| Stacking | Connects to another bracket of the same display size and orientation to form an array (M5 fixings supplied) |
Dimensions
| Dimension A (per 88130 drawing) | 265.50 mm |
| Dimension B (per 88130 drawing) | 185.00 mm (7.28 in) |
