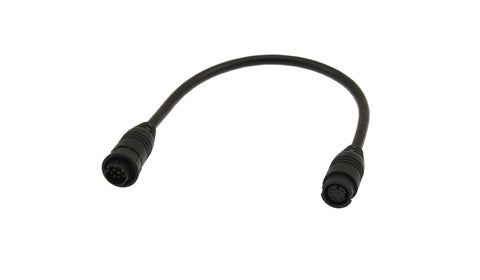

Raymarine Axiom DownVision Adaptor Cable (9-pin to 7-pin)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine A80484 is a DownVision adaptor cable that bridges the 9-pin sonar connector on Axiom multifunction displays to the 7-pin connector used by earlier Raymarine DownVision transducers. This allows owners of legacy 7-pin DownVision transducers to upgrade to an Axiom display without replacing their existing transducer installation.
The cable is a direct wiring adaptor with no active electronics. It routes the relevant DownVision sonar signals between the two connector formats and is intended for permanent installation. Where a second transducer is also required, the separate Y-cable variants (A80486, A80487) support simultaneous dual-transducer connection.
PRODUCT DETAILS
- Adapts Axiom's 9-pin DownVision port to a 7-pin transducer connector
- Allows legacy 7-pin DownVision transducers to connect to Axiom MFDs without transducer replacement
- Passive wiring adaptor, no active electronics
- For single-transducer connections; Y-cable variants available (A80486, A80487) for dual connections
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Display connector | 9-pin (Axiom DownVision port) |
| Transducer connector | 7-pin |
Physical
| Type | Wiring adaptor cable (passive) |
