Raymarine Axiom Power Cable 1.5m Right-Angled with NMEA 2000 Connector
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

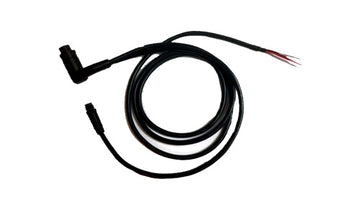

The Raymarine R70561 is a 1.5 m right-angled power and NMEA 2000 cable for Axiom 7, 9 and 12 multifunction displays. The right-angled display connector provides a low-profile exit, making it suitable for flush-mounted or space-constrained helm installations. It combines the DC power feed and NMEA 2000 network connection in a single cable from the display port.
The cable terminates at the display end with the right-angled Axiom multi-way connector and at the supply end with bare, tinned power wires and an NMEA 2000 connector. For a straight connector, use R70523.
PRODUCT DETAILS
- 1.5 m right-angled power cable with integrated NMEA 2000 connector for Axiom 7, 9 and 12
- Right-angled connector provides a low-profile, compact exit at the display
- Combines DC power feed and NMEA 2000 network connection in a single cable
- Straight version available as R70523
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Physical
| Cable length | 1.5 m |
| Connector format | Right-angled |
Connections
| Display connector | Axiom power/data port |
| Network | NMEA 2000 connector |
| Supply end | Bare tinned wires |
