Raymarine

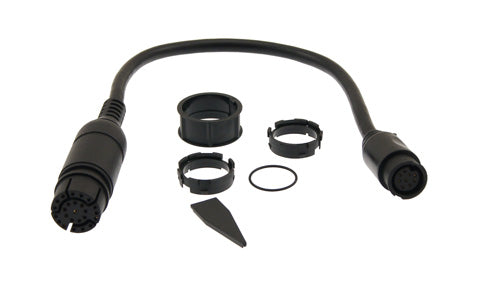

Raymarine Axiom RealVision Adaptor Cable (25-pin to 9-pin)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine A80490 is a RealVision adaptor cable bridging the 25-pin RealVision port on Axiom multifunction displays to the 9-pin connector on compatible RealVision transducers. It is a passive wiring adaptor with no active electronics, intended for permanent in-boat installation.
For 7-pin transducers use A80488; for 8-pin use A80489. Y-cable variants for simultaneous dual-transducer connection are available as A80491 through A80494.
PRODUCT DETAILS
- Adapts the Axiom 25-pin RealVision port to a 9-pin transducer connector
- Allows 9-pin RealVision-compatible transducers to connect to Axiom MFDs
- Passive wiring adaptor, no active electronics
- For 7-pin use A80488; for 8-pin use A80489
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Connections
| Display connector | 25-pin (Axiom RealVision port) |
| Transducer connector | 9-pin |
Physical
| Type | Wiring adaptor cable (passive) |
