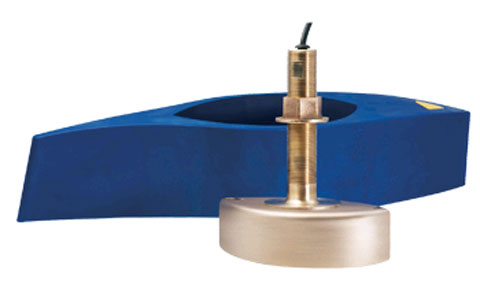

Raymarine B258 1Kw 50-200 kHz Bronze Through Hull Transducer inc Fairing
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine B258 features four internal ceramics for increased sensitivity and better deep-water performance, and is supplied with a custom-fit, high-performance fairing block. It is 25 times more sensitive than a single-element 50/200 kHz transducer, making 600 W fishfinders perform like their more powerful big brothers, especially at 50 kHz.
The high-performance ceramic-element construction produces narrow beams that clearly distinguish individual fish and bottom fish from their habitat at depths down to 670 m (2,200 ft). When properly installed, the B258 is capable of clear images and a clean bottom trace at speeds over 30 knots (34 mph). It is fitted with an 8-pin connector for the Raymarine CP370 digital sonar module.
PRODUCT DETAILS
- 1kW RMS dual-frequency (50/200 kHz) performance
- Four internal ceramics, 25x more sensitive than a single-element transducer
- Elliptical-pattern narrow beams for clear target separation
- Bronze through-hull body with high-performance fairing block
- Clean bottom trace at speeds over 30 knots
- 8-pin connector for the CP370 sonar module
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Mount | Through-Hull |
| Material | Bronze |
| Power (RMS) | 1kW |
| Max Depth | 2,200 ft (L) / 1,000 ft (H) |
| Frequency | 50 / 200 kHz |
| Beam Width | 15 deg x 21 deg @ 50 kHz, 3 deg x 5 deg @ 200 kHz (elliptical) |
| Deadrise Angles | 0 - 26 deg |
| Records | Depth / Temperature |
| Hull Material | Fibreglass / Wood |
| Cable Length | 9 m (30 ft) |
| Connector | 8-pin DSM-style |
