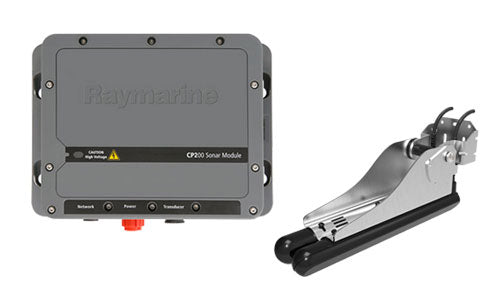

Raymarine CP200 SideVision CHIRP Sonar Module Pack with CPT-200 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine CP200 sonar pack combines the CP200 ClearPulse CHIRP SideVision sonar module with the CPT-200 SideVision transom-mount transducer, supplying everything you need to add side-looking sonar to a compatible Raymarine LightHouse multifunction display.
SideVision shows you a clear, detailed picture of the underwater world to the port and starboard of your boat, making it easy to locate structure, bait and fish over a wide swath of water that conventional down-looking sonar would miss. Using CHIRP technology, the CP200 transmits across a wide spectrum of frequencies for high-resolution returns, with separate port and starboard channels and depth coverage to 183 m (600 ft).
Supplied with the CPT-200 transom-mount transducer, this pack is ready to install and network with Raymarine's chartplotter displays.
PRODUCT DETAILS
- Complete pack: CP200 ClearPulse CHIRP SideVision sonar module plus CPT-200 transom-mount transducer
- Side-looking sonar gives a clear view to the port and starboard of your boat
- Reveals fish-holding structure and bait across a wide swath that down-looking sonar would miss
- Separate CHIRP port and starboard channels for wide side coverage
- Depth coverage to 183 m (600 ft), ideal for inshore and coastal fishing
- CPT-200 SideVision transom transducer included, ready to install
- Networks with Raymarine LightHouse chartplotter displays
- CP200 SideVision CHIRP sonar module
- CPT-200 SideVision transom-mount transducer
- Documentation
- Fixing screws x 4
- Power cable 1.5 m (5 ft)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Sonar
| Channels | CHIRP port and starboard |
| Beam coverage | Port and starboard-facing: wide (port / starboard) and thin (fore / aft) |
| Depth range | Up to 183 m (600 ft). Range performance is dependent on many factors, including water quality, transducer installation, and reflectivity of targets and structure. |
Physical
| Dimensions | Height: 162 mm (6.4 in), Width: 225 mm (8.9 in), Depth: 72 mm (2.8 in) |
| Weight | 0.6 kg (1.32 lbs) |
Power
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| Power consumption | 5.6 W (maximum) |
| Current | 1 A peak |
| Fuse rating | 5 A |
Environmental
| Waterproof rating | IPx6, IPx7 |
| Operating temperature | 0 C to 55 C (32 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Up to 95% |
Conformance
| Standards | EN 60945:2002 |
| EMC directive | EMC Directive 2014/30/EU |
| Regional approvals | Australia and New Zealand: C-Tick, Compliance Level 2 |
