Raymarine Cyclone Pro 110W 3ft Open Array Radar with 15m Cables

Raymarine

Raymarine Cyclone Pro 110 Watt 3ft Open Array Radar With 15m Cables

Name: Raymarine Cyclone Pro 110 Watt 3ft Open Array Radar With 15m Cables
Brand: Raymarine
SKU: T70494
Price: 8495.00 GBP
Availability: InStock

£8,495.00

Tax included. Shipping calculated at checkout.

T70494

Complete Cyclone Pro 3ft open-array radar pack: 110 W pedestal, 3ft antenna, VCM100 and a 15 m cable set. Solid-state Doppler radar equivalent to a 12 kW magnetron, with CHIRP pulse compression and RangeFusion. Ready to network to a LightHouse multifunction display.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £764.55
+2 years (up to 5 years total) £1,529.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Raymarine Cyclone Pro 3ft Open Array Radar pack is a complete, ready-to-install 110-watt solid-state open-array radar system. It combines the 110-watt Cyclone Pro pedestal with the 3ft Cyclone antenna, a VCM100 voltage converter and a 15 m power and 15 m data cable set, so everything needed to add the radar to a LightHouse multifunction display is supplied in one part number.

With a peak power output equivalent to a 12 kW magnetron and a maximum range of 96 nautical miles, the system delivers excellent target separation through CHIRP pulse compression and beam-sharpening, plus Doppler target tracking, exclusive RangeFusion technology and antenna rotation up to 60 RPM. The 3ft array is rated to 100 knots of wind and the pedestal to IPX6.

PRODUCT DETAILS

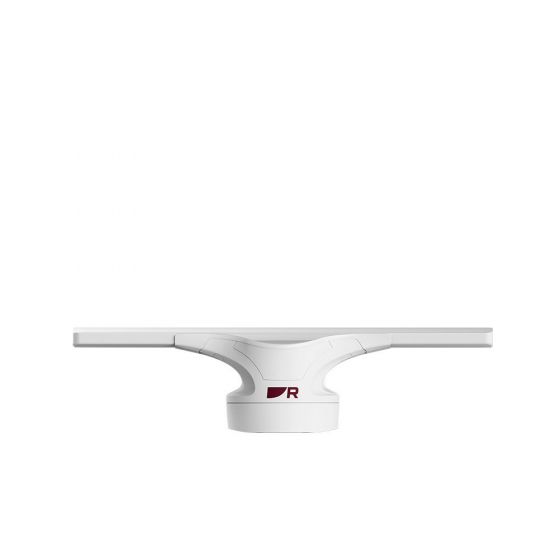

Complete Cyclone Pro open-array radar system with a 3ft antenna
110 W solid-state transmitter, equivalent to a 12 kW magnetron (max range 96 Nm)
Includes the Cyclone Pro pedestal (E70621) and 3ft antenna (E70628)
Includes a VCM100 voltage converter and 15 m power + 15 m data cables
RangeFusion technology and Doppler target tracking for superior awareness
Antenna rotation up to 60 RPM; 100-knot wind rating; IPX6 pedestal

Cyclone Pro pedestal (E70621)
Cyclone 3ft antenna (E70628)
Cyclone Power Cable 15 m (A80653)
Radar Data Cable 15 m (A80659)
VCM100 Voltage Converter Module (E70648)
Antenna and pedestal mounting hardware

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Raymarine Axiom 2 Pro 9 RVM

Image coming soon

Raymarine Axiom 2 XL 16 Chartplotter Kit

Image coming soon

Raymarine Axiom 2 XL 19 Chartplotter Kit

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 12 RVM

Image coming soon

Raymarine Axiom 2 XL 22 Chartplotter Kit

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Image coming soon

Raymarine Axiom 2 XL 24 Chartplotter Kit

Raymarine Axiom 2 Pro 12 S

Performance

Radar type	Solid State open array radar (Doppler)
Peak power output	110 W
Equivalent magnetron power	12 kW magnetron equivalent
Maximum range scale	96 Nm
Antenna size	3ft (E70628)
Horizontal beamwidth	2.83°
Antenna rotation speed	12 / 24 / 36 / 48 / 60 RPM

Power

Supply voltage (using VCM100)	Nominal 12 V dc or 24 V dc (Min 10.2 V dc, Max 31.2 V dc)
Power consumption (typical)	95 W
Power consumption (maximum)	195 W

Physical

Pedestal dimensions	388 mm x 360 mm x 335 mm (to top of antenna)
Antenna length	1031 mm

Environmental

Waterproof rating	IPX6
Maximum wind speed	100 Kts

In the box

Supplied cables	Cyclone Power Cable 15 m (A80653) and Radar Data Cable 15 m (A80659)
Voltage converter	VCM100 Voltage Converter Module (E70648)

Cyclone & Cyclone Pro Installation Instructions (87402 Rev 2)

What is the difference between Cyclone and Cyclone Pro?

Cyclone uses a 55-watt solid-state transmitter (equivalent to a 6 kW magnetron) with a maximum range of 72 nautical miles, while Cyclone Pro uses a 110-watt transmitter (equivalent to a 12 kW magnetron) with an extended maximum range of 96 nautical miles. Both share the same pedestal, antennas, Doppler and RangeFusion features.

Which multifunction displays is the Cyclone radar compatible with?

The Cyclone open-array radar is compatible with Raymarine LightHouse 3 multifunction displays, including Axiom, Axiom+, Axiom Pro and Axiom XL, running at least LightHouse software version 3.15. It is also supported on Axiom 2 Pro and Axiom 2 XL displays.

Does the Cyclone radar require a VCM100 voltage converter?

Yes. The Cyclone and Cyclone Pro radars are powered through the VCM100 Voltage Converter Module (E70648), which supplies the radar from a nominal 12 V dc or 24 V dc system. Topfill radar packs include the correct VCM100; older VCM100 versions (E52091) are not suitable.

What data does the Doppler target tracking need?

Doppler features require COG (Course Over Ground) and SOG (Speed Over Ground) data from a GPS or GNSS source on the system. A heading source (e.g. an Evolution autopilot sensor) is recommended and improves Doppler performance at speeds below 15 knots, but is not essential.

Can I run two radars on the same system?

Yes. A networked Raymarine system supports a maximum of two radar scanners at any one time, for example a Cyclone open array together with a Quantum radome, or two Cyclone open arrays, subject to the positioning guidance in the installation instructions.
