This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine
Raymarine Element Ice Fishing Kit
Description

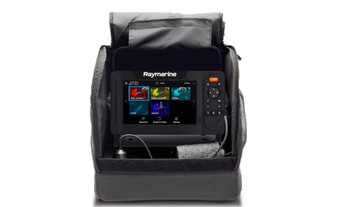

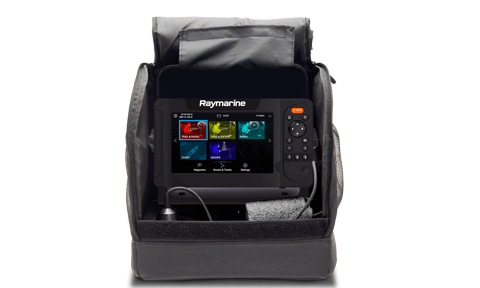

The Raymarine Element Ice Fishing Kit (A80581) turns any Element display into a hard-water sonar setup. The insulated, waterproof carry bag holds the display upright on the ice, with a 12 V 7 Ah battery and international charger to keep you fishing through the day.
The included CPT-S ice fishing transducer uses a 15-pin HV-type connector with a 2.5 m cable, a float and retention clips, delivering high CHIRP returns from 0.6 m down to 274 m. The transducer is IPx8 rated for continuous submersion to 3 m and reads through an offset angle of 0 degrees for a straight-down view of the water column.
The display is sold separately; an Element 7, 9 or 12 in either S or HV form drops straight in, powered via the optional 300 mm ice fishing power cable (R70724).
PRODUCT DETAILS
- Complete ice fishing pack for Raymarine Element displays
- Includes a waterproof carry bag
- 12 V 7 Ah battery with charger
- CPT-S ice fishing transducer with float
- Element display sold separately
- Raymarine ice fishing bag
- 12 V 7 Ah battery with international charger
- Battery retention straps
- CPT-S ice transducer (HV connector)
- Float
- Float retention clips (x2)
- Ferrite
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Sonar
| Channels | 1 x CHIRP sonar |
| Power output | 90 W |
| Typical depth range | 0.6 m (2 ft) to 274 m (900 ft) in optimum conditions |
| Offset angle | 0° |
Transducer
| Included transducer | CPT-S ice fishing transducer with 2.5 m (8.2 ft) cable and 15-pin HV-type connector |
| Transducer weight | 0.260 kg (9.17 oz) |
| Water ingress protection | IPx8, continuously submerged at a depth of 3 m (approximately 10 ft) |
| Operating temperature range | -2°C (28.4°F) to +35°C (95°F) |
Battery
| Capacity | 7.0 Ah (7000 mAh), 20 hours @ 25°C (77°F) |
| Nominal voltage | 12 V dc |
| Capacity vs temperature (20 hours) | 40°C: 102%; 25°C: 100%; 0°C: 85%; -15°C: 65% |
| Operating temperature range | -15°C (5°F) to 50°C (122°F) |
Charger
| Input voltage | 100 V ac to 240 V ac, 50/60 Hz |
| Output | 14.5 V dc, 1 A |
| Type | Class 2 power supply, suitable for indoor use only |
Physical
| Bag dimensions (approximate) | Width: 290 mm (11.42 in); height: 270 mm (10.63 in); depth: 290 mm (11.42 in) |
| Unboxed weight (including display) | 4.95 kg (10.91 lb) |
| Boxed weight (excluding display) | 4.7 kg (10.36 lb) |
