This product has been discontinued by Raymarine and is no longer available to buy.
Raymarine

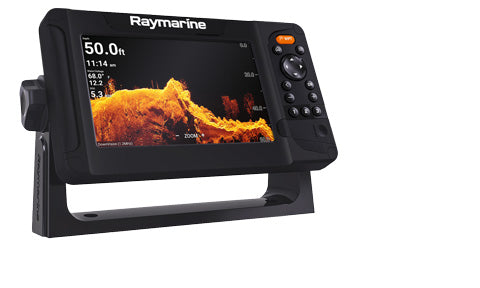

Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Description
The Raymarine Element 7 HV packs HyperVision sonar into a compact 7 inch chartplotter fishfinder. Super-high 1.2 MHz CHIRP frequencies sharpen RealVision 3D, SideVision and DownVision imagery to picture-like levels, picking out individual fish, weed beds and structure, while standard 350 kHz modes and 200 kHz conical high CHIRP cover deeper water down to 274 m.
The LightHouse Sport operating system is built for fishing, with three Quicklaunch buttons, RealBathy live bathymetry recording and support for LightHouse NC2 charts with Fishing Hot Spots, Navionics and C-MAP cartography. A built-in GPS / GLONASS / BeiDou receiver handles positioning.
HV-100 and HV-300 series HyperVision transducers connect directly; CPT-S, DownVision and Dragonfly transducers connect via adaptor cables. Quantum radar pairs over Wi-Fi, and an Evolution autopilot can be driven over SeaTalkng. Element displays run standalone and do not network with Axiom MFDs.
PRODUCT DETAILS
- HyperVision 1.2 MHz super-high-resolution CHIRP sonar
- Seven sonar channels: RealVision 3D, SideVision and DownVision in Hyper and Standard modes, plus 200 kHz conical high CHIRP
- 15-pin HyperVision transducer connector
- LightHouse Sport operating system with three programmable Quicklaunch buttons
- RealBathy personal sonar map creation
- Built-in GPS / GLONASS / BeiDou receiver
- Compatible with LightHouse NC2 charts with Fishing Hot Spots, Navionics and C-MAP cartography
- Pairs wirelessly with Quantum series radar scanners
- Sends navigation data to an Evolution autopilot over SeaTalkng / NMEA 2000
- Sunlight-viewable 1500 nit display, IPx6 / IPx7 rated
- Wi-Fi for over-the-air software updates
- Element 7 HV display
- Trunnion bracket
- Trunnion knobs (x2)
- Surface mount gasket
- Surface mount fixings (4 x M4 x 40 machine screws, flat washers, locking nuts)
- Sun cover
- Power / NMEA 2000 cable (1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
- Documentation pack
No exploded diagram available for this product.
Raymarine HV100.02 HyperVision Transom Transducer, 6 m Cable
Raymarine HV-300TH Through Hull Transducer 6 Meter Cable
Raymarine HV-300THP Pair of HV-300TH Through Hull Transducers
Raymarine HV-300THP-P Split Transducer Port Plastic 2M
Raymarine HV-300THP-S Split Transducer STBD Plastic 2M
Raymarine CPT-S Transom Mount Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Raymarine CPT-100DVS DownVision Transom Mount Transducer
Raymarine CPT-110 DownVision Through Hull Transducer
Raymarine CPT-120 DownVision Through Hull Transducer
Raymarine Dragonfly CPT-DVS Spare Transducer
Raymarine CPT-70 Dragonfly Through Hull Plastic CHIRP Transducer
Raymarine CPT-80 Dragonfly Through Hull Bronze CHIRP Transducer
Raymarine HV-100 HyperVision Transom Transducer 6 Meter Cable
Raymarine Transducer Extension Cable for Direct Connect Transduser 3m
Raymarine MinnKota Transducer to Element HV Adaptor Cable
Raymarine HyperVision Thru-Hull Transducer Split Y-Cable, 0.5 m
Raymarine Element 7 Trunnion Kit
Raymarine CPT-S / DownVision 9-Pin Transducer to Element HV Adaptor Cable
Raymarine Element Ice Fishing Kit
Raymarine Dragonfly CPT-DV - CPT-DVS Extension Cable 4m
Raymarine MotorGuide Transducer to Element HV Adaptor Cable
Raymarine Dragonfly 10-Pin Transducer to Element HV Adaptor Cable
Raymarine HyperVision Transducer Extension Cable, 4 m
Raymarine Transducer Extension Cable for CPT-S, CPT100, CPT110 and CPT120, 4 m
Raymarine Axiom Power Cable 1.5m Straight with NMEA 2000 Connector
Raymarine Element 7 Surface Mount Kit
Raymarine Element 7 Sun Cover
Raymarine p70s Autopilot Control Head
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine SeaTalk ng Starter Kit
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Evolution Cabling Kit (SeaTalkng)
Raymarine EV-1 Sensor Core
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power Cable
Raymarine ECI-100 Engine and Control Interface
Raymarine SeaTalk ng Backbone Kit
Raymarine p70Rs Autopilot Control Head
Raymarine Quantum Q24W Wireless Only CHIRP Radar with 10m Power Cable
Display
| Display size | 7.0" |
| Display type | TN (Twisted Nematic) |
| Resolution | WVGA 800 x 480 |
| Aspect ratio | 5:3 |
| Colour depth | 24 bit |
| Maximum brightness | 1500 cd/m2 (1500 nits) |
| Viewing angle (T / B / L / R) | 50° / 60° / 70° / 70° |
Sonar
| Sonar channels | Conical high CHIRP sonar; RealVision 3D (Hyper); RealVision 3D (Standard); SideVision (Hyper); SideVision (Standard); DownVision (Hyper); DownVision (Standard) |
| Sonar frequencies | 1.2 MHz CHIRP; 350 kHz CHIRP; 200 kHz CHIRP |
| Sonar power | 1.2 MHz (Hyper) = 1000 W; 350 kHz (Standard) = 700 W; 200 kHz (conical high CHIRP) = 100 W |
| Range (200 kHz conical high CHIRP) | 0.6 m (2 ft) to 274 m (900 ft) |
| Range (350 kHz Standard) | RealVision 3D: to 91 m (300 ft); SideVision: to 91 m (300 ft) each side; DownVision: to 183 m (600 ft) |
| Range (1.2 MHz Hyper) | RealVision 3D / SideVision / DownVision: to 38 m (125 ft) |
| Transducer connector | 1 x 15-pin HyperVision connector |
GNSS receiver
| Channels | Multiple — ability to simultaneously track up to 28 satellites |
| GNSS compatibility | GPS; GLONASS; BeiDou |
| SBAS compatibility | EGNOS; GAGAN; MSAS; QZSS; WAAS |
| Cold start | Less than 2 minutes |
| Receiver sensitivity | 165 dBm (tracking); 160 dBm (acquisition); 148 dBm (cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Position accuracy | Without SBAS: within 15 m, 95% of the time; with SBAS: within 5 m, 95% of the time |
| Geodetic datum | WGS-84 (alternatives can be selected on the MFD) |
| Antenna | Internal — ceramic chip mounted near top of unit |
Connections
| SeaTalkng / NMEA 2000 | 1 x DeviceNet female connector built into power cable |
| Wi-Fi | 1 x 802.11 b/g/n (2.4 GHz) |
| NMEA 2000 LEN (Load Equivalency Number) | 1 (based on 9 V dc nominal voltage) |
| Memory card | 1 x MicroSDXC card slot |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 8 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption (approximate @ 12 V dc) | 16.8 Watts |
| Fuse rating | Inline fuse: 5 A; thermal breaker: 3 A |
Physical
| Width (trunnion bracket) | 263.85 mm (10.39 in) |
| Height (trunnion bracket) | 162.59 mm (6.40 in) |
| Width (surface mount) | 239.60 mm (9.43 in) |
| Height (surface mount) | 135.10 mm (5.32 in) |
| Depth (overall) | 149.40 mm (5.88 in) |
| Weight (display only) | 1.0 kg |
Environmental
| Operating temperature range | -25°C (-13°F) to +55°C (+131°F) |
| Storage temperature range | -30°C (-22°F) to +70°C (+158°F) |
| Humidity | Up to 93% @ 40°C (+104°F) |
| Water ingress protection | IPx6 and IPx7 |
Conformance
| Conformance | EN 60945:2002; EMC Directive 2014/30/EU; Australia and New Zealand C-Tick compliance level 2; Canadian RSS 247; FCC rules part 15 |
