Raymarine SeaTalk ng Backbone Kit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

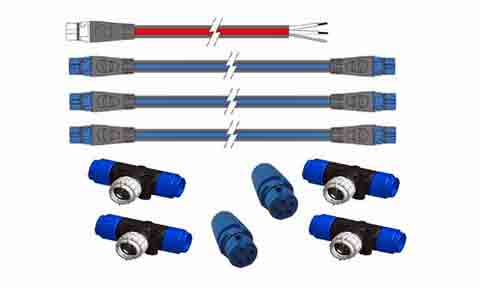

The Raymarine SeaTalkng Backbone Kit contains everything needed to construct a multi-point SeaTalkng network on board. Use the backbone cables to run the length of the boat and provide connectivity wherever it is needed. T-pieces insert into the backbone to create spur connections for devices and sensors, the power cable energises the network and the blue backbone terminators complete the circuit at each end.
With a 20 m and two 5 m backbone cables plus four T-pieces, the kit suits larger installations spanning helm, mast and engine spaces.
PRODUCT DETAILS
- Builds a full multi-point SeaTalkng backbone
- Includes 20 m and two 5 m backbone cables
- Four T-pieces for device spur connections
- Two terminators and a power cable
- Suits larger vessel installations
- 2 x A06031 SeaTalkng Backbone Terminators
- 1 x A06037 SeaTalkng Backbone Cable 20m
- 2 x A06036 SeaTalkng Backbone Cable 5m
- 4 x A06028 SeaTalkng T-Pieces
- 1 x A06049 SeaTalkng Power Cable 2m
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 12 S
Raymarine Element 12 S Chartplotter with CHIRP Sonar
General
| Type | SeaTalkng backbone kit |
| Backbone cables | 1 x 20m (A06037), 2 x 5m (A06036) |
| T-pieces | 4 x A06028 |
| Power cable | A06049 (2m) |
| Terminators | 2 x A06031 |
