Raymarine Evolution Cabling Kit (SeaTalkng)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

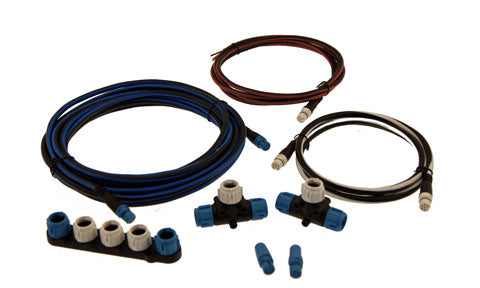

The Raymarine Evolution cabling kit (R70160) supplies the SeaTalkng parts needed to wire a standard Evolution autopilot system. Per the EV-1 installation instructions (document 87472), the kit consists of one 5-way connector block (A06064), one 3 m spur cable (A06040), one 2 m power cable (A06049) and two backbone terminators (A06031). Together these create a compact SeaTalkng backbone that links the EV-1 or EV-2 sensor, the ACU and a p70s or p70Rs control head, with fused 12 V power feeding the bus. The kit is included in the Evolution system packs and is the right starting point when building a system from separate components. Additional spur cables, T-pieces and backbone lengths are available separately.
PRODUCT DETAILS
- Official Evolution autopilot SeaTalkng cabling kit
- 1 x 5-way connector block (A06064)
- 1 x spur cable, 3 m (A06040)
- 1 x power cable, 2 m (A06049)
- 2 x backbone terminators (A06031)
- Included in Evolution system packs
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Raymarine EV-1 Sensor Core
Raymarine EV-2 Sensor Core
Raymarine ACU-100 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-200 Actuator Control Unit
Raymarine ACU-300 Actuator Control Unit
Raymarine ACU-400 Actuator Control Unit
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Kit contents
| 5-way connector | 1 x A06064 |
| Spur cable | 1 x 3 m (9.8 ft), A06040 |
| Power cable | 1 x 2 m (6.6 ft), A06049 |
| Backbone terminators | 2 x A06031 |
