Raymarine ACU-150 Actuator Control Unit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

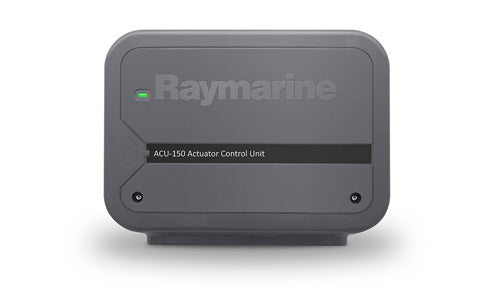

The Raymarine ACU-150 Actuator Control Unit (E70430) is the dedicated hydraulic-steering member of the compact ACU family. It houses the main power and drive electronics in a 180 x 140 x 52 mm case weighing 0.6 kg and delivers up to 12 A continuous drive current to a Type 1 12 volt hydraulic pump. The pairing is designed for hydraulic steering systems with a ram capacity between 80 cc (4.9 cu in) and 230 cc (14.0 cu in), typical of single outboard and inboard powerboats.
The unit runs from a 12 V dc supply (10.8 to 15.6 V dc) with a 300 mA standby draw, and its drive electronics are sealed to IPx6. The ACU-150 is the heart of the EV-150 Power Pilot packs and works with the EV-1 Sensor Core, with control from a p70s or p70Rs pilot head or a compatible Axiom chartplotter. Raymarine has issued a product recall notice affecting certain ACU-150 units; contact us with your serial number for guidance.
PRODUCT DETAILS
- Evolution actuator control unit for hydraulic steering systems
- Drives Type 1 12 volt hydraulic pumps (80 to 230 cc ram capacity)
- Up to 12 A continuous drive current output
- 12 V dc operation (10.8 V to 15.6 V dc)
- Compact 180 x 140 x 52 mm case, 0.6 kg
- Drive electronics waterproof to IPx6
- Core component of the EV-150 Power Pilot packs
- 300 mA standby power consumption
- ACU unit
- Screws (pan head type)
- SeaTalkng spur to bare wires cable, 1 m (3.3 ft)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine EV-1 Sensor Core
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Image coming soonRaymarine EV-1 Sensor Core (E70096R)
Raymarine Type 1 12 Volt Autopilot Hydraulic Pump (80-230cc)
Raymarine Autopilot Rudder Angle Transducer
Raymarine Evolution Cabling Kit (SeaTalkng)
Output
| Drive current output | Maximum continuous 12 A at supply voltage |
Physical
| Dimensions | Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight | 0.6 kg (1.32 lbs) |
Environmental
| Waterproof rating | Connector panel: IPx2, Drive electronics: IPx6 |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Relative humidity | Max. 93% |
Conformance
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| Power consumption (standby) | 300 mA (12 V) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
