Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)

Raymarine

Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)

Name: Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Brand: Raymarine
SKU: T70407
Price: 1795.00 GBP
Availability: InStock

£1,795.00

Tax included. Shipping calculated at checkout.

T70407

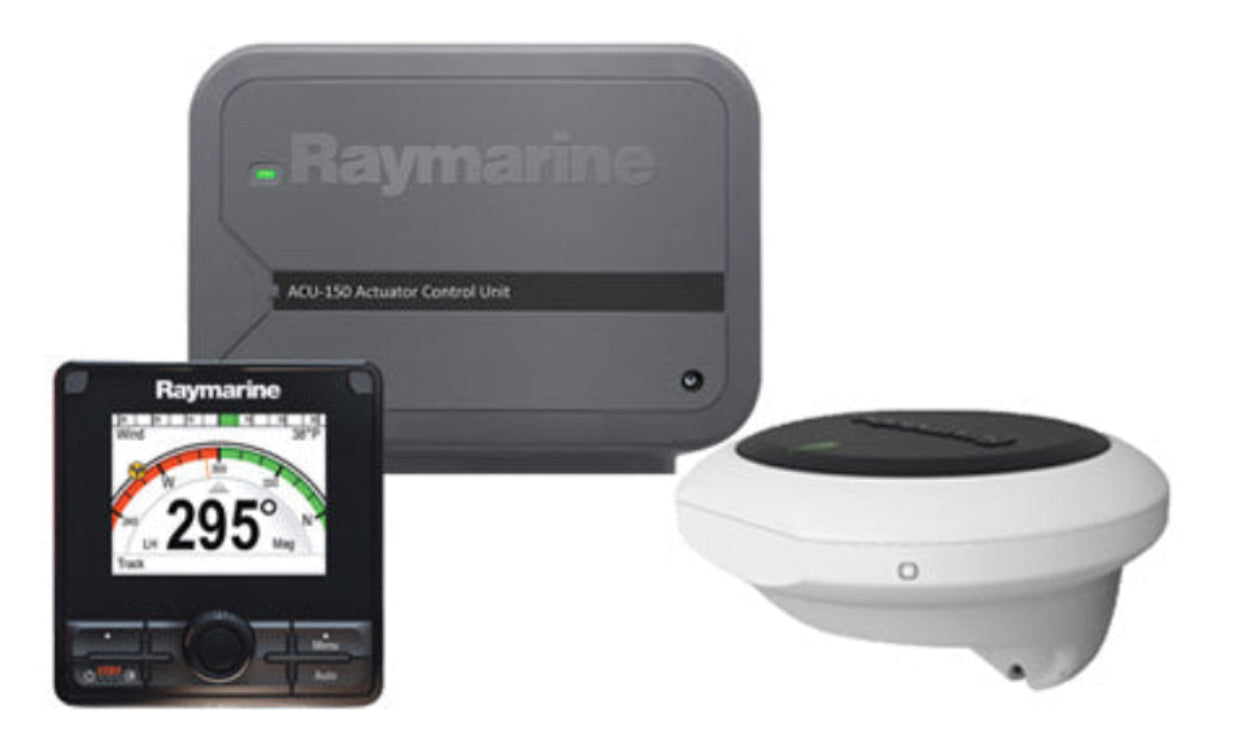

Evolution EV-150 autopilot electronics pack: EV-1 Sensor Core, ACU-150, p70Rs rotary head and cabling kit, without the hydraulic pump. Ideal where a Type 1 drive is already installed.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £161.55
+2 years (up to 5 years total) £323.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Raymarine EV-150 Power Pilot kit (T70407) supplies the electronics of the EV-150 hydraulic autopilot, the EV-1 Sensor Core, ACU-150 actuator control unit, p70Rs rotary control head and Evolution SeaTalkng cabling kit, leaving the drive to be specified separately. It is the natural choice when upgrading an older Raymarine hydraulic pilot whose Type 1 pump is already plumbed in, or when the pump will be sourced with the steering gear.

The ACU-150 pairs officially with the Type 1 12 volt hydraulic pump (M81120) for steering rams of 80 to 230 cc. The 9-axis EV-1 needs no commissioning calibration, Hydro-Balance keeps hydraulic steering crisp, and pilot control is also available from a compatible Axiom chartplotter. Raymarine has issued a recall notice affecting certain ACU-150 units; contact us with your serial number for guidance.

PRODUCT DETAILS

EV-1 Sensor Core, ACU-150, p70Rs head and cabling kit, no drive
Pairs with the Type 1 12 V hydraulic pump (M81120), sold separately
For hydraulic steering cylinders of 80 to 230 cc (4.9 to 14.0 cu in)
Hydro-Balance technology prevents steering oscillation
Pilot control also available from compatible Axiom chartplotters

EV-1 Sensor Core (E70096)
ACU-150 actuator control unit (E70430)
p70Rs control head (E70329)
Evolution cabling kit (R70160)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 Pro 12 S

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 24 Chartplotter

Image coming soon

Raymarine Axiom 2 XL 16 Chartplotter Kit

Image coming soon

Raymarine Axiom 2 XL 19 Chartplotter Kit

Image coming soon

Raymarine Axiom 2 XL 22 Chartplotter Kit

Image coming soon

Raymarine Axiom 2 XL 24 Chartplotter Kit

Raymarine Alpha 7 Performance Display

Raymarine Alpha 9 Performance Display

Raymarine Type 1 12 Volt Autopilot Hydraulic Pump (80-230cc)

System

Autopilot type	Evolution EV-150 Power Autopilot
Suitable steering system	Hydraulic steering, 80 to 230 cc (4.9 to 14.0 cu in) ram capacity (Type 1 pump sold separately)
Control head	p70Rs control head (E70329)
Heading sensor	EV-1 Sensor Core (E70096)
Actuator control unit	ACU-150 actuator control unit (E70430)
Drive unit	Not included (choose a compatible drive for your steering system)
Cabling	Evolution cabling kit (R70160)
Controller alternatives	Compatible Raymarine Axiom family chartplotter (LightHouse 4 v4.4.70 or later for Axiom 2 Pro / Axiom 2 XL)

Which Evolution pack suits my boat?

Match the pack to your steering system: EV-100 Wheel or Tiller for cockpit-drive sailboats, EV-100, EV-150 or EV-200 Power for hydraulic steering depending on cylinder capacity, EV-200 Sail for below-decks mechanical steering, EV-300 for solenoid-controlled systems, EV-400 for Type 2 and Type 3 drives on larger vessels, and EV-DBW for drive-by-wire steering.

Does an Evolution autopilot need calibration?

No. Set-up is automatic: the rudder gain, rudder damping, counter rudder and compass calibration routines required by earlier autopilots are no longer necessary, and the system keeps refining itself as you use the boat. This is documented in the EV-1 installation instructions (87472).

Do I need a rudder angle reference sensor?

Raymarine highly recommends the rudder angle reference transducer (M81105) on every Evolution system for optimum performance, and it is essential on ACU-300 solenoid installations. The EV-400 Sail and Power packs include a rotary rudder feedback unit, and the ACU-300 ships with one.

How do I check the displacement ratings?

Use the vessel's fully laden displacement, which Raymarine notes is often around 20 percent above the designed displacement, when comparing your boat against a drive or pack rating.

Can I control the autopilot from my chartplotter?

Yes. Compatible controllers include the Axiom, Axiom+, Axiom Pro, Axiom 2 Pro, Axiom XL and Axiom 2 XL chartplotter families as well as the p70s and p70Rs pilot heads. Axiom 2 Pro and Axiom 2 XL need LightHouse 4 v4.4.70 or later; earlier families are supported per the compatibility tables in document 87472.
