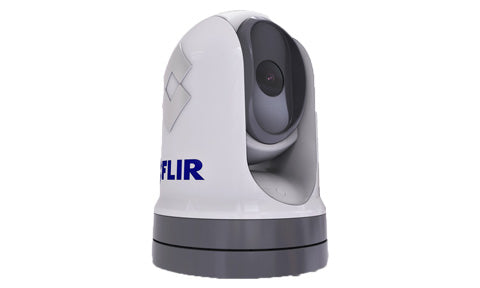

Raymarine FLIR M364 Pan and Tilt Thermal IP Camera 30Hz
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The M364 combines a robust, all-weather design with a leading-edge high-resolution FLIR thermal sensor, providing enhanced situational awareness for maritime professionals and recreational boaters. Its 640 x 512 VOx microbolometer delivers superior night vision and almost twice the range capability of a standard thermal sensor, detecting obstacles and targets even in total darkness, glare, light fog and rough seas.
Advanced two-axis gyro stabilisation keeps the field of view steady on a selected bearing through vessel pitch and yaw. The M364 offers full 360 degree continuous pan with plus or minus 90 degrees of tilt, controlled from a compatible chartplotter touchscreen or an optional joystick control unit, plus a 24 by 18 degree field of view and 4x continuous digital zoom. Comprehensive connectivity, with NTSC/PAL analog video over BNC, HD-SDI lossless output and two independent H.264/MJPEG IP video streams, supports integration with Raymarine, Furuno, Garmin and Simrad systems. ONVIF Profile S conformance, automatic window defrost and IPX6 protection complete the package, and Marine Video Analytics intelligently identifies non-water objects. This 30 Hz variant suits fast craft and dynamic viewing.
PRODUCT DETAILS
- High-resolution 640 x 512 FLIR Boson thermal core for superior night vision and almost twice the range of a standard sensor
- Two-axis gyro stabilisation keeps the image steady through pitch and yaw
- Full 360 degree continuous pan and plus or minus 90 degree tilt
- 30 Hz refresh rate for smooth viewing on fast-moving vessels
- Analog NTSC/PAL over BNC, HD-SDI lossless output and two independent H.264/MJPEG IP video streams
- Marine Video Analytics intelligently identifies non-water objects
- 4x continuous digital zoom with a 24 by 18 degree field of view
- Rugged IPX6 housing with automatic window defrost and ONVIF Profile S conformance
No exploded diagram available for this product.
No compatible transducers listed for this product.
FLIR M232 Right Angle Power Cable, 10m
Image coming soon6G-SDI Cable 1m RA BNC to BNC
Image coming soon6G-SDI Cable 3m RA BNC to BNC
Image coming soon6G-SDI Cable 10m RA BNC to BNC
Image coming soon6G-SDI Cable 30m RA BNC to BNC
Image coming soonM300 Thermal Camera Top Down Riser Kit
Image coming soonM300 Thermal Camera Gasket Set for Top Down Riser
FLIR M-Series HD-SDI Video Cable, 10m, Right Angle BNC to BNC
Image coming soonM300 Thermal Camera Power, Serial and CVBS Cable, 10m
Image coming soonM300 Thermal Camera Cable Kit, 0.5m
Image coming soonM300 Thermal Camera Power, Serial and CVBS Cable, 0.5m
Image coming soonM300 Thermal Camera BNC Video Cable, 3m
Image coming soonM300 Thermal Camera Right Angle Power Cable, 3m
Image coming soonM300 Boson 640 - 9 Hz
Image coming soonM300 Thermal Camera Mounting Kit, 65mm
Imaging / Detector
| Detector type | 640 x 512 VOx Microbolometer |
| Video refresh rate | 30 Hz or <9 Hz (set to 30 Hz) |
Optics / Field of View
| Field of view | 24 deg x 18 deg |
| Focal length | 18 mm |
| Focus | Fixed 12 ft (3 m) to infinity |
| Digital zoom | 4x Continuous |
Video & Networking
| Network video output | Two independent H.264/MJPEG network video streams |
| Analog video output | NTSC/PAL user settable, BNC connector |
| HD-SDI output | HD-SDI lossless video output |
| ONVIF | Profile S conformant |
| Marine Video Analytics | Yes |
Pan & Tilt
| Stabilisation | Two-axis gyro stabilised |
| Pan / tilt adjustment range | 360 deg continuous pan, +/- 90 deg tilt |
Power
| Power requirements | 12 to 24 V DC |
| Power consumption | 41 W nominal; 56 W with heaters |
Physical
| Weight | 6.3 kg (13.9 lb); 6.8 kg (14.9 lb) with top-down riser |
| Dimensions | 222 mm (8.7 in) x 328 mm (12.9 in); 254 mm x 366 mm with riser |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to +131 F) |
| Water ingress | IPX6 |
| Window defrost | Automatic, standard at power-up |
| Standards | IEC 60945 (vibration, salt mist, EMI); near strike at 2 kV (lightning) |
Range
| Detect a 30-foot vessel | 3.2 nm (5.92 km) |
| NATO target (2.3 m x 2.3 m at 50%) | 0.95 nm (1.76 km) |
| Detect human-sized target | 0.39 nm (725 m) |
