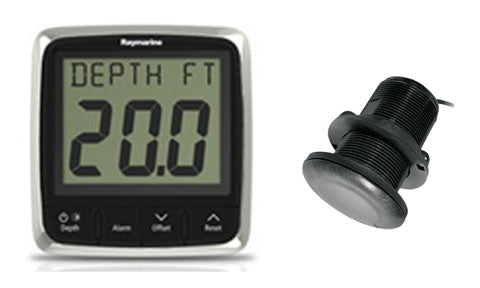

Raymarine i50 Depth Display with P319 Depth Through Hull Transducer
Manufacturer Part Number:
E70148
Manufacturer Part Number:
E70148
The i50 Depth allows you to see Depth, Depth trend indicator, Minimum and maximum depth. Has audible shallow, anchor and deep water alarms. Large numerals and digits with excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Red back lighting for enhanced night time visibility. Units are both SeaTalk 1 and SeaTalk ng compatible. Boxed with P319 Low Profile Through Hull Plastic Depth Transducer
Home or Marina Delivery
Pick up at Hamble
More Information
Dimensions
A 110 mm (4.22”)
B 115 mm (4.52”)
C 14 mm (0.55”)
D 30 mm (1.18”)
E 35 mm (1.38”)
F 90 mm (3.54”)
G 17 mm (0.67”)
In the Box
1. Instrument display
2. Suncover (to match i70s, p70s, p70Rs, eS Series)
3. Front bezel (to match i70s, p70s, p70Rs, eS Series)
4. Gasket
5. Suncover (to match a, c, e Series)
6. Front bezel (to match a, c, e Series)
7. SeaTalkng spur cable
8. SeaTalkng blanking plug
9. 4 x fixing screws
10. Documentation
i50 i60 Navigation
Specifications
- Weight:
- Plastic—0.6 kg (1.3 lb)
- Bronze—0.9 kg (2.0 lb)
- Hull Deadrise: Up to 8°
- Acoustic Window: Urethane
- Hole Diameter: 51 mm (2”)
