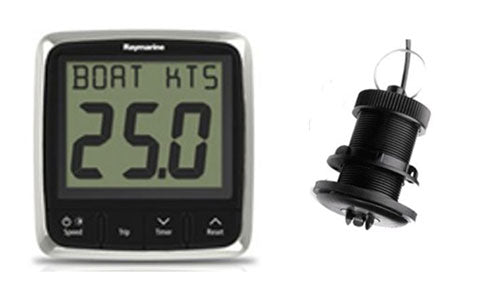

Raymarine i50 Speed Display with P120 Speed and Temperature Through Hull Transducer
Manufacturer Part Number:
T70583
Manufacturer Part Number:
T70583
The i50 Speed allows you to see Speed Through Water or Speed Over Ground (GPS required), Sea surface temperature, Trip and Log data. Large numerals and digits with excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design. Red back lighting for enhanced night time visibility. Units are both SeaTalk 1 and SeaTalk ng compatible. Boxed with P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer
Home or Marina Delivery
Pick up at Hamble
More Information
Dimensions
A 110 mm (4.22”)
B 115 mm (4.52”)
C 14 mm (0.55”)
D 30 mm (1.18”)
E 35 mm (1.38”)
F 90 mm (3.54”)
G 17 mm (0.67”)
In the Box
1. Instrument display
2. Suncover (to match i70s, p70s, p70Rs, eS Series)
3. Front bezel (to match i70s, p70s, p70Rs, eS Series)
4. Gasket
5. Suncover (to match a, c, e Series)
6. Front bezel (to match a, c, e Series)
7. SeaTalkng spur cable
8. SeaTalkng blanking plug
9. 4 x fixing screws
10. Documentation
i50 i60 Navigation
Specifications
- Weight:
- 0.7 kg (1.4 lb)—Plastic
- 1.3 kg (2.8 lb)—Bronze
- 1.6 kg (3.5 lb)—Stainless Steel
- Speed Range: 2 knots to 45 knots (2 MPH to 52 MPH)
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Pressure Rating: 3 m (10’)
- Pulse Rate: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
- Supply Voltage: 9 VDC to 16 VDC
- Supply Current: <200 mA
- Standard Cable Length: 6 m (20’) NMEA 2000 cable, 9 m (30’) Analog
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- CE Regulation: Complies to IERC60945
