Raymarine i70s and i60 System Pack
Manufacturer Part Number:
T70331
Manufacturer Part Number:
T70331

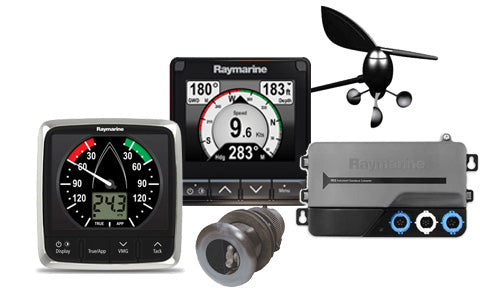

i70s and i60 System Pack Contains, i70s Colour instrument , i60 Wind Display with Wind and DST speed depth temp transducer, iTC-5, 3M backbone, 5 Way Connector, STng power cable and 2 backbone terminators
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine i70s Display with Wind, Speed, Depth and Temperature Transducers Short ng
Raymarine i70s Display with Wind, Speed, Depth and Temperature Transducers Long ng
Raymarine i70s and i60 System Pack
Raymarine i70s Wireless Wind, DST800 and Backbone Kit
Raymarine i70 Wireless Wind, DST800, Heading Sensor and Backbone Kit
Raymarine i70 Wireless Vertical Wind, DST800, heading Sensor and Backbone
Short arm wind vane
30m cable
Long arm wind vane
50m cable
i70s Navigation
Pack contents
1. iTC-5
2. Fixing screws x 2
3. Document pack includes:
• Installation instructions
• Warranty registration card
• Multilingual CD
4. 400mm SeaTalkng spur cable (A06038)
Unit dimensions
A 163.5 mm (6.44 in)
B 151.1 mm (5.95 in)
C 48.85 mm (1.92 in)
D 44.3 mm (1.74 in)
E 93.1 mm (3.66 in)
In the Box
1. Documentation
2. Panel seal gasket
3. 400 mm (15.7 in)SeaTalkng® spur cable
(A06038)
4. i70s instrument display (supplied with keymat
and black bezel (A80353) fitted)
5. Suncover (A80357)
6. Spare gunmetal bezel (A80354)
7. Mounting fixings x 4
Dimensions
In the Box
1. Instrument display
2. Suncover (to match i70s, p70s, p70Rs, eS Series)
3. Front bezel (to match i70s, p70s, p70Rs, eS Series)
4. Gasket 5 Suncover (to match a, c, e Series)
6. Front bezel (to match a, c, e Series)
7. SeaTalkng spur cable
8. SeaTalkng blanking plug
9. 4 x fixing screws
10. Documentation
Dimensions
A 110 mm (4.22”)
B 115 mm (4.52”)
C 14 mm (0.55”)
D 30 mm (1.18”)
E 35 mm (1.38”)
F 90 mm (3.54”)
G 17 mm (0.67”)
