Raymarine i70s Depth, Speed and Wind Pack with Long Arm Vane
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

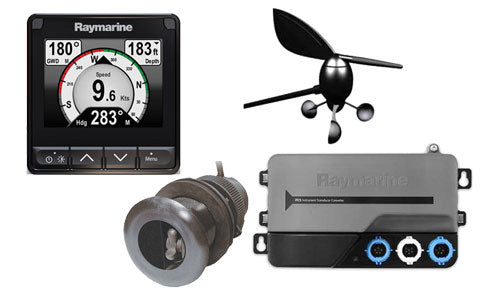

This Raymarine system pack scales the i70s instrument network for larger yachts: the 4.1 inch i70s colour multifunction display, a long arm masthead wind vane, a DST800 through hull depth, speed and temperature transducer and the iTC-5 converter that digitises the masthead signal onto SeaTalkng. The 9 m backbone cable kit with T-piece, power cable and terminators reaches further from masthead junction to helm.
The i70s shows wind, speed, depth and tridata pages on an optically bonded 1,200 cd/m2 screen with characters up to 43 mm, and calibrates every transducer connected through the iTC-5. Autopilots and Axiom chartplotters join the same backbone with a spur each.
For smaller boats the T70216 pack pairs the same electronics with a short arm vane and 3 m cable kit.
PRODUCT DETAILS
- Complete i70s instrument system for larger yachts
- i70s 4.1 inch colour display, 1,200 cd/m2, IPx6 and IPx7
- Long arm masthead wind vane and DST800 depth, speed and temperature transducer
- iTC-5 converter with full calibration from the i70s
- 9 m SeaTalkng backbone cable kit included
- Expands with autopilots, Axiom chartplotters and more displays
- i70s multifunction instrument display
- Long arm masthead wind vane transducer
- DST800 through hull depth, speed and temperature transducer
- iTC-5 instrument transducer converter
- 9 m SeaTalkng backbone cable kit
- SeaTalkng T-piece
- SeaTalkng power cable
- 2x SeaTalkng backbone terminators
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Screen | 4.1 inch TFT LCD, optically bonded |
| Resolution | 320 (H) x 240 (V) |
| Colours | 16 bit colour (64k colours) |
| Brightness | 1,200 cd/m2 |
| Character height | Up to 43 mm (1.7 in) |
Physical
| Width | 110 mm (4.33 in) |
| Height | 115 mm (4.53 in) |
Mounting
| Panel cut-out | 92 mm (3 5/8 in) hole cutter |
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Current | 143 mA |
| Power consumption | 1.7 W |
| LEN (NMEA 2000 Load Equivalency Number) | 3 |
Connections
| Data connections | 1x SeaTalkng connector |
Environmental
| Waterproof rating | IPx6 and IPx7 |
| Relative humidity | 93% max |
| Operating temperature | -25°C to +55°C (-13°F to +131°F) |
| Storage temperature | -30°C to +70°C (-22°F to +158°F) |
Conformance
| Conformance | Europe 2004/108/EC; Australia and New Zealand C-Tick compliance level 2; NMEA 2000 certification pending at publication |
- Installation Instructions (87420 Rev 1, EN)
- Operation Instructions i70 / i70s (81401 Rev 6, EN)
- Mounting Template i70s (87260-1)
- Declaration of Conformity EU (i70s, E70327)
- PSTI Statement of Compliance (i70s, E70327)
- Declaration of Conformity EU (iTC-5, E70010)
- PSTI Statement of Compliance (iTC-5, E70010)
