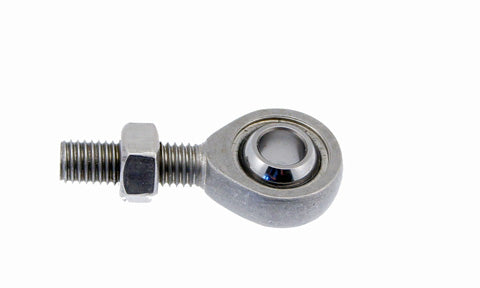

Raymarine M12 Rod End (Rose Joint)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine M12 Rod End (Rose Joint) is a genuine hardware fitting used in linear autopilot drive installations to provide the articulating connection at the drive output end. The rose joint allows angular misalignment between the linear drive ram and the tiller arm or rudder quadrant, ensuring smooth and reliable force transmission without binding. The M12 thread size suits the relevant Raymarine linear drive configuration. Replacing a worn rose joint eliminates play and restores precise drive response.
PRODUCT DETAILS
- Genuine Raymarine M12 rod end (rose joint) for linear drive
- Allows angular misalignment between drive and tiller/quadrant
- Ensures smooth force transmission without binding
- M12 thread; replaces worn joint to eliminate play
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Compatibility
| Fits | Raymarine linear autopilot drive units |
| Part Type | M12 Rod End / Rose Joint |
| Function | Articulating connection between drive ram and tiller arm/rudder quadrant |
Physical
| Thread Size | M12 |
