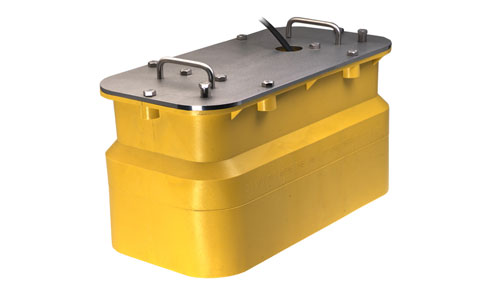

Raymarine R111LH 2kW Depth In Hull CHIRP Low-High Transducer with Mounting Kit
Manufacturer Part Number:
A80133
Manufacturer Part Number:
A80133
The R111LH CHIRP Depth In Hull Transducer. Compatible hull material: fiberglass. Max Power: 2000 watts. Frequency: Low 38-75 kHz and High 130-210 kHz Beamwidth: Low 10-19 degrees, High 4-8 degrees. Cable: 30ft (9.1m) cable with connector for connection to CP450C, CP470 and CP570. Comes with In-Hull Mounting Kit
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° beamwidth
- High—CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
- 117 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidth
- Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- Urethane transducer housing
- Hull Type: Solid fiberglass only
Specifications
- Hull Deadrise: 0° to 22°
- Acoustic Window: Epoxy/urethane
- All mounting hardware provided, including tank
- Weight: 19.7 kg (43.4 lb)
