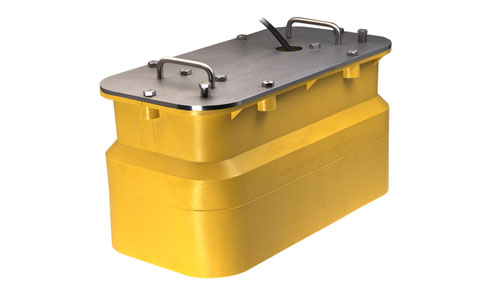

Raymarine R111LM 2kW Depth In Hull CHIRP Low-Medium Transducer with Mounting Kit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine R111LM is an in-hull 2kW CHIRP transducer. High-power 2 kW in-hull CHIRP. Operating across 38-75 kHz (L) and 80-130 kHz (M), it delivers strong target separation and bottom detail in both shallow and deep water.
Installed inside the hull, it eliminates the need to drill any holes and transmits through solid fibreglass. The R111LM is fitted with an 11-pin CHIRP transducer connector that mates directly to Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470, CP570 and legacy CHIRP sonar modules.
PRODUCT DETAILS
- 2kW RMS power output for deep-water performance
- CHIRP frequencies: 38-75 kHz (L) and 80-130 kHz (M)
- In-Hull installation, 0 - 22 deg deadrise
- 11-pin CHIRP connector for Axiom Pro RVX, Axiom 2 Pro RVM, RVX-1000, RVM-1600, CP470 and CP570
- 10 m (33 ft) transducer cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 Pro 12 RVM
Raymarine CP470 CHIRP Sonar Module
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Raymarine RVM1600 RealVision MAX 3D CHIRP Sonar Module
Raymarine Axiom 2 Pro 16 RVM
Raymarine CP570 Professional CHIRP Sonar Module
General
| Mount | In-Hull |
| Material | Urethane |
| Power (RMS) | 2kW |
| Frequency | 38-75 kHz (L), 80-130 kHz (M) |
| Beam Width | 23 deg to 9 deg (L), 13 deg to 8 deg (M) |
| Deadrise Angles | 0 - 22 deg |
| Hull Material | Fibreglass |
| Cable Length | 10 m (33 ft) |
| Connector | 11-pin CHIRP |
