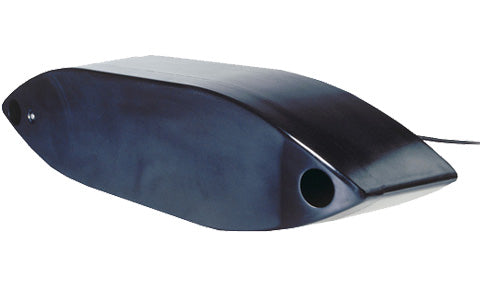

Raymarine R509LH 3kW Depth In Hull CHIRP Low-High Transducer with Mounting Kit
Manufacturer Part Number:
A80210
Manufacturer Part Number:
A80210
The R509LH CHIRP Depth In Hull Transducer. Compatible hull material: fiberglass. Max Power: 3000 watts. Frequency: Low 28-60 kHz and High 130-210 kHz Beamwidth: Low 9-23 degrees, High 4-8 degrees. Cable: 30ft (9.1m) cable with connector for connection to CP450C, CP470 and CP570. Comes with In-Hull Mounting Kit
Home or Marina Delivery
Pick up at Hamble
More Information
Features
- Depth & fast-response water-temperature sensor
- Low—CHIRPS from 28 kHz to 60 kHz 23° to 9° port-starboard beamwidth (11° to 5° fore-aft beamwidth)
- High—CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth
- 112 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 28, 38, 50, and 200 kHz plus everything else in the bandwidth
- Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking)
- Epoxy transducer housing with High-Performance Fairing
- Boat Size: 12 m (40’) and above
- Hull Type: Fiberglass, wood, or metal
Specifications
- Hull deadrise: 0° to 25°
- Acoustic Window: Epoxy/urethane
- Weight: 20.8 kg (46 lb)
