Raymarine Ray50 DSC Compact VHF Radio

Name: Raymarine Ray50 DSC Compact VHF Radio
Brand: Raymarine
SKU: E70243
Availability: Discontinued

E70243

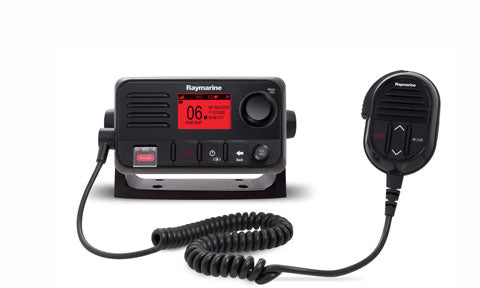

The Raymarine Ray50 is a compact Class D DSC fixed-mount VHF radio with 25W transmit power and a bright sunlight-viewable display. Built to IPX6 and IPX7 it carries channels across the US, International and Canadian marine bands. A SeaTalkng / NMEA 2000 connection shares DSC and position data with a compatible Raymarine multifunction display.

Description

The Ray50 is Raymarine's compact fixed-mount marine VHF, engineered for boats where panel space is tight but full Class D DSC safety is essential. It transmits at a selectable 1W or 25W across all US, International and Canadian VHF marine bands, and its double-conversion superheterodyne receiver delivers clear reception with squelch sensitivity below -2 dBuV EMF.

An IPX6 and IPX7 waterproof rating lets the Ray50 shrug off heavy spray and brief immersion. A removable Fistmic gives intuitive channel and volume control, while the 2.5W base speaker keeps calls audible over engine noise. Connect the SeaTalkng / NMEA 2000 port to a compatible Raymarine MFD and the radio shares DSC distress and position data across the helm. NMEA 0183 and an audio (RCA) output round out the connections for a flexible install.

PRODUCT DETAILS

Class D DSC fixed-mount VHF with 25W / 1W selectable transmit power
All US, International and Canadian VHF marine channels
IPX6 and IPX7 waterproof to withstand spray and brief immersion
SeaTalkng / NMEA 2000 connection shares DSC and position with Raymarine MFDs
Removable Fistmic and 2.5W base-station speaker
NMEA 0183 input and audio (RCA) output

Ray50 radio
Fistmic handset
Sun cover
Panel mount gasket
Mounting bracket with knobs
Fistmic mounting clip and fixings
Panel mount fixings
Protective antenna boot
SeaTalkng blanking plug
SeaTalkng 400 mm (15.7 in) spur cable
Documentation

No exploded diagram available for this product.

No compatible transducers listed for this product.

Raymarine Volume/Sq./OK Knob (Black) Ray50/52/53

Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 15m Extension Cable

Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 10m Extension Cable

Raymarine RayMic for Ray60, Ray70, Ray90 and Ray91 VHF Radio

Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 5m Extension Cable

Raymarine Element 9 HV Chartplotter with HyperVision Sonar

Raymarine Element 12 HV Chartplotter with HyperVision Sonar

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 12 RVM

Raymarine Element 9 S Chartplotter with CHIRP Sonar

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Element 7 S Chartplotter with CHIRP Sonar

Raymarine Element 7 HV Chartplotter with HyperVision Sonar

Raymarine Axiom 2 Pro 12 S

Raymarine Element 12 S Chartplotter with CHIRP Sonar

Physical

Operating temperature	-20C (-4F) to +60C (140F)
Storage temperature	-25C (-13F) to +70C (158F)
Relative humidity	95%
Waterproofing	IPX6 & IPX7
Dimensions (panel mount)	168 mm (W) x 156 mm (H) x 88.5 mm (front), 59 mm behind panel
Dimensions (bracket mount)	192.5 mm (W) x 121 mm (H) x 173.75 mm (D)

Power

Nominal supply voltage	12 V dc (Reverse polarity and over voltage protection)
Operating voltage range	9 V dc to 16 V dc
Current consumption	Less than 6 A at high power (13.6 V); Standby 600 mA; Receive 2 A

Transmitter

TX channels	All available US, International and Canadian VHF marine bands
TX frequency range	156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
TX power output	Low power 1 W; High power 25 W
Channel spacing	12.5 kHz
Frequency stability	+/- 1.5 ppm
Maximum deviation	+/- 5 kHz
Spurious emissions	Better than -36 dBm at 25 W (Less than 0.25 uW)
Antenna impedance	50 Ohms (typical)

Receiver

Receiver type	Double conversion super heterodyne
RX frequency range	156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Sensitivity	Better than 1 microvolt EMF @ 20dB SINAD
Squelch sensitivity	Less than -2 dBuV EMF
Adjacent channel selectivity	More than 70 dB
Spurious response rejection	More than 70 dB
Intermodulation rejection	More than 68 dB
Audio distortion	Less than 10%
Receiver sensitivity	Distance 119dBm (0.25uV) @ 12dB SINAD; Local 110dBm (0.7uV) @ 12dB SINAD (typical)

General

DSC class	Class D
Connections	1 x NMEA 0183; 1 x SeaTalkng / NMEA 2000; 1 x Audio (RCA)
AIS receiver	No (Ray50)
Integrated GPS	No (Ray50)

Audio

Base station speaker power output	2.5 W (8 Ohm)
Fistmic speaker power output	1 W (16 Ohm)
External speaker power output	5 W (4 Ohm) / 2.5 W (8 Ohm)

No videos available for this product.

Ray50 / Ray52 / Ray60 / Ray70 Installation & Operation Instructions (81356)

Does the Ray50 have a built-in GPS?

No. The Ray50 does not have an internal GPS receiver. Connect it to a GPS source over SeaTalkng / NMEA 2000 (for example a compatible Raymarine MFD) so it has the position data needed for DSC distress alerting. The Ray53 is the equivalent model with built-in GPS.

What transmit power does the Ray50 have?

The Ray50 transmits at a selectable 1 W (low power) or 25 W (high power) across all US, International and Canadian VHF marine bands.

Is the Ray50 waterproof?

Yes. The Ray50 is rated to IPX6 and IPX7, so it withstands powerful water jets and brief immersion. Note that Raymarine does not warrant products subjected to commercial high-pressure washing.

Can I add a second station to the Ray50?

The Ray50 is the compact model and does not have a rear second-station connector. For a second station with a RayMic handset, choose the Ray60 or Ray70.

Does the Ray50 connect to a Raymarine MFD?

Yes. The Ray50 has a SeaTalkng / NMEA 2000 connection that shares DSC and position information with a compatible Raymarine multifunction display.
