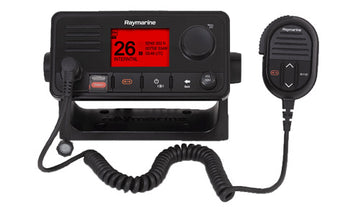

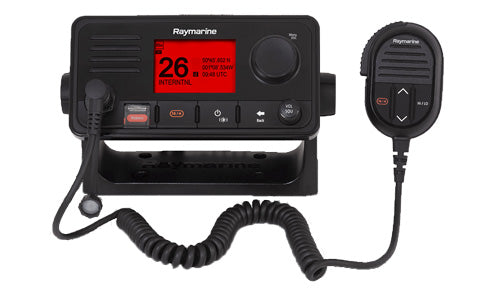

Raymarine Ray73 VHF Radio Integrated GPS and AIS
Manufacturer Part Number:
E70517
Manufacturer Part Number:
E70517
Raymarine’s Ray73 radio is communications central for your boat with built-in VHF, AIS receiver and loudhailer capabilities. Built on our full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.
Home or Marina Delivery
Pick up at Hamble
More Information
VHF Navigation
Raymarine RayMic for Ray60, Ray70, Ray90 and Ray91 VHF Radio
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 5m Extension Cable
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 10m Extension Cable
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 15m Extension Cable
Raymarine Ray90 Ray91 Wired Station Pack
Raymarine Ray90 Ray91 Passive Speaker
Raymarine Handset Adapter cable (12 pin to 12 pin) with passive spk output
Raymarine VHF Wireless Station Pack with Wireless Hub
Raymarine VHF Wireless Station Pack
Raymarine VHF Wireless Handset and Holster Charger
Raymarine Wireless Handset Active Speaker
Raymarine Wireless adaptor cable Ray63 Ray73 220mm
Panel mount dimensions
A: 199mm(7.83in)
B: 98.5mm(3.88in)
C: 143mm(5.63in)
D: 61.6mm(2.43in)
E: 16.6mm(0.65in)
F: 90mm3.54in)
G: 176mm(6.93in)
Bracket mount dimensions
A: 226mm(8.89in)
B: 133mm(5.24in)
C: 204.6mm(8.05in)
D: 90mm(3.54in)
Fistmic
A: 68.5mm(2.7in)
B: 97.6mm(3.8in)
C: 8mm(0.3in)
D: 36mm(1.4in)
Parts supplied
1: VHF Radio
2: Suncover
3: Panel mount gasket
4: Fistmic
5: Mounting bracket
(Trunnion)
6: Mounting bracket knobs
7: Fistmic hook plate
8: 4xM4x25 screws (For Bracket(Trunnion) mounting)
9: Documentation
10: 4xM4 nuts, springwashers and M4x25 machinescrews (ForPanelmounting)
11: Protective antenna boot
12: 2xM4x12
screws
(ForFistmic hook plate mounting).
13: SeaTalkng®blanking plug
14: SeaTalkng®400mm(15.7in.) spurcable
