Raymarine RNS8 - RayNet 8 Port Gigabit Network Switch with 4 POE Ports
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

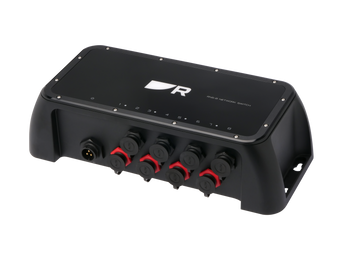

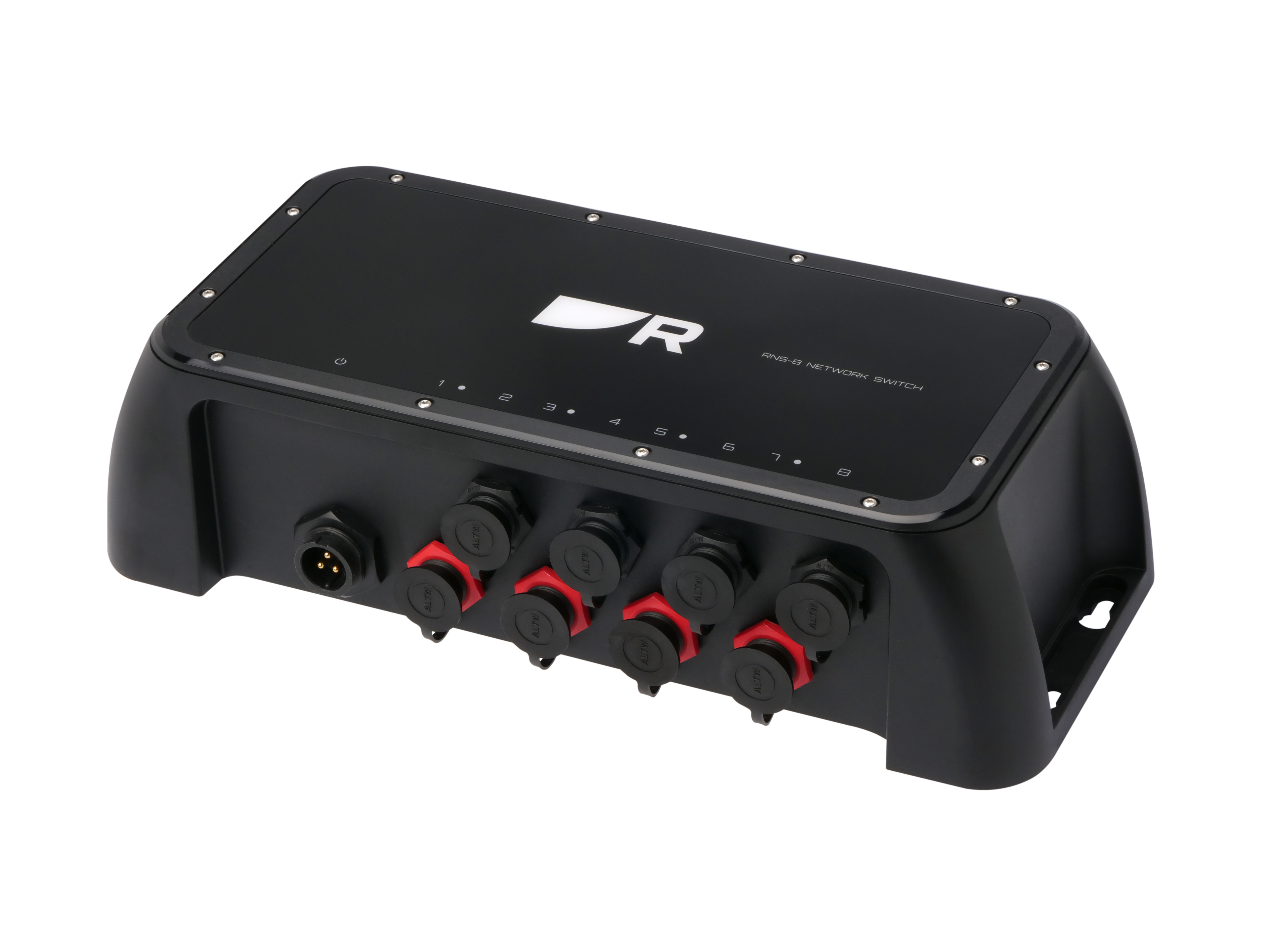

The Raymarine RNS-8 (A80732) is an 8-port Gigabit RayNet network switch for large integrated Raymarine chartplotter systems. It features 4 standard Gigabit RayNet ports and 4 dedicated Power-over-Ethernet (PoE) ports. Each PoE port supports PoE Classes 0 to 4 with a maximum of 30 W per port, allowing devices such as the CAM300 marine IP camera and RMK-10 remote keypad to be powered directly through the network cable, removing the need for a separate power supply at each camera or keypad. The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router.
The RNS-8 is rated IPX6 and IPX7 waterproof and operates from 9 V to 31.2 V dc. It is unmanaged for simple plug-and-play operation, with LED power and port status indicators, and offers remote diagnostics and performance monitoring via a web browser. For extended networks, up to 8 RNS-8 switches can be daisy-chained together. Maximum power consumption is 160 W at 12 V dc and 150 W at 24 V dc with all PoE ports fully loaded, so an appropriately rated high-current power supply must be provided when using all PoE ports simultaneously.
PRODUCT DETAILS
- 8 x Gigabit RayNet ports - 4 standard plus 4 PoE (up to 30 W per PoE port)
- PoE ports power CAM300 marine cameras and RMK-10 remote keypads directly over the RayNet cable
- Supports YachtSense digital control systems and the YachtSense Link mobile router
- Remote diagnostics and performance monitoring via web browser
- IPX6 and IPX7 waterproof rating; suitable for above-deck installations
- Up to 8 RNS-8 switches can be daisy-chained for larger vessel networks
- 1 x RNS-8 Network Switch, Documentation pack, Fixing screws x4 (M4, 8.94 x 25 mm), Power cable 1.5 m (4.9 ft)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Raymarine RVM1600 RealVision MAX 3D CHIRP Sonar Module
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 Pro 12 S
Network
| Network connection ports | 4 x RayNet (10/100/1000 Mbits/s) + 4 x PoE RayNet (10/100/1000 Mbits/s, up to 30 W each) |
| PoE classes supported | PoE Classes 0 to 4 (IEEE 802.3at) |
| Maximum PoE devices | 4 PoE + 4 non-PoE (8 total) |
| Management | Unmanaged; remote diagnostics and performance monitoring via web browser |
| Daisy-chain | Up to 8 RNS-8 switches |
Power
| Nominal supply voltage | 12 V or 24 V dc |
| Operating voltage range | 9 V to 31.2 V dc |
| PoE operating voltage range | 10.8 V to 31.2 V dc |
| Max power consumption | 160 W @ 12 V dc; 150 W @ 24 V dc |
| Inline fuse rating | 15 A @ 12 V dc; 8 A @ 24 V dc |
| Current | 13.3 A (maximum) @ 12 V dc; 6.25 A (maximum) @ 24 V dc |
| Thermal breaker rating | 20 A @ 12 V dc; 10 A @ 24 V dc |
Environmental
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Relative humidity | Up to 93% @ 40 °C (104 °F) |
Physical
| Dimensions (L x W x H) | 287.63 mm x 125.5 mm x 78 mm (11.32 x 4.94 x 3.07 in) |
| Weight | 960.5 g (2.12 lbs) |
Conformance
| Product markings | UKCA, CE, Australian Tick, WEEE Directive |
| Standards | EN 60945:2002, ICES-003, CFR47 Part 15, IACS section E10 |
