Raymarine RS130 and SeaTalk 1 to SeaTalk ng Converter Retro Pack

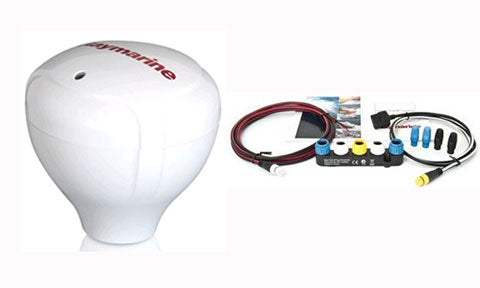

Name: Raymarine RS130 and SeaTalk 1 to SeaTalk ng Converter Retro Pack
Brand: Raymarine
SKU: T70133
Availability: Discontinued

T70133

Genuine Raymarine retro pack pairing the RS130 GNSS GPS sensor with a SeaTalk 1 to SeaTalk NG converter. Designed to upgrade an older vessel to a SeaTalk NG (NMEA 2000) GPS source while keeping selected legacy SeaTalk 1 devices connected to the network.

Description

The Raymarine RS130 and SeaTalk 1 to SeaTalk NG Converter Retro Pack combines two items used when modernising an older installation: the RS130 GNSS GPS sensor and a SeaTalk 1 to SeaTalk NG converter.

The RS130 provides a high sensitivity, multi-constellation GNSS position source with SeaTalk NG / NMEA 2000 connectivity. The SeaTalk 1 to SeaTalk NG converter lets selected legacy SeaTalk 1 devices, such as instruments and autopilots, continue to communicate on the new SeaTalk NG network. Together they make it straightforward to add a modern GPS feed and a SeaTalk NG backbone while retaining compatible older equipment.

SeaTalk NG is Raymarine's implementation of the NMEA 2000 standard, and the converter is rated IPx6 for installation below decks.

PRODUCT DETAILS

Retro pack combining the RS130 GNSS GPS sensor and a SeaTalk 1 to SeaTalk NG converter
Adds a modern SeaTalk NG / NMEA 2000 GPS source to an older vessel
Keeps selected legacy SeaTalk 1 devices connected to the network
Ideal for upgrading instruments and autopilots to SeaTalk NG

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Raymarine p70s Autopilot Control Head

Raymarine Element 9 HV Chartplotter with HyperVision Sonar

Raymarine Element 12 HV Chartplotter with HyperVision Sonar

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Axiom 2 Pro 12 RVM

Raymarine Element 9 S Chartplotter with CHIRP Sonar

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Element 7 S Chartplotter with CHIRP Sonar

Raymarine Element 7 HV Chartplotter with HyperVision Sonar

Raymarine i70s Multifunction Instrument Display

Raymarine Element 12 S Chartplotter with CHIRP Sonar

Pack contents

Item 1	RS130 GNSS GPS sensor (SeaTalk NG / NMEA 2000)
Item 2	SeaTalk 1 to SeaTalk NG converter

Converter

Connections	SeaTalk NG backbone x 2, SeaTalk NG spur x 2, SeaTalk spur x 1
Waterproof rating	IPx6
Operating voltage range	9 V DC to 16 V DC

No videos available for this product.

What is included in the T70133 retro pack?

The pack pairs the RS130 GNSS GPS sensor with a SeaTalk 1 to SeaTalk NG converter, so you can add a modern GPS source and bring selected legacy SeaTalk 1 devices onto a SeaTalk NG network.

Why would I choose this pack rather than the items separately?

It is aimed at retrofit and upgrade installations where you want both a new SeaTalk NG GPS source and the ability to keep existing SeaTalk 1 instruments or autopilots connected, supplied together.

Is the GPS compatible with NMEA 2000 networks?

Yes. The RS130 uses SeaTalk NG / NMEA 2000 connectivity, so it works on a SeaTalk NG backbone and with compatible NMEA 2000 systems.
