Raymarine Type 1 Linear Drive Motor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

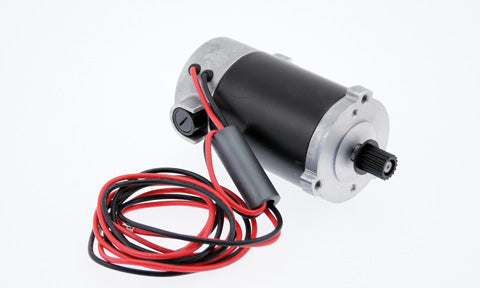

The Type 1 Linear Drive Motor is the electric drive motor at the heart of a Raymarine Type 1 mechanical linear autopilot drive. Driven by the autopilot's actuator control unit, it operates a push and pull linear drive through a gearbox to move the boat's rudder via the tiller arm or quadrant.
An electro-mechanical clutch allows the drive to freewheel for smooth hand-steering when the autopilot is disengaged. This unit forms part of an Evolution or SmartPilot autopilot system and is intended as a drive motor for the corresponding Type 1 linear drive.
PRODUCT DETAILS
- Electric drive motor for Raymarine Type 1 mechanical linear autopilot drives
- Operates a push/pull linear drive through a gearbox to move the rudder
- Electro-mechanical clutch freewheels for smooth hand-steering when disengaged
- Part of an Evolution or SmartPilot autopilot system
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Drive
| Drive type | Mechanical linear drive motor |
| Drive classification | Type 1 |
Compatibility
| Autopilot system | Evolution / SmartPilot |
