Raymarine Volvo Engine EVC Link Cable 1m
Manufacturer Part Number:
E70240
Manufacturer Part Number:
E70240

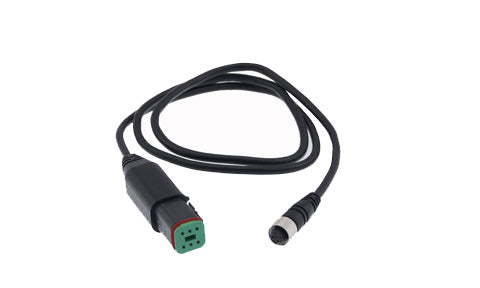

Volvo engine EVC link cable 1m used to link ECI-100 to compatible Volvo ECV engine
Home or Marina Delivery
Pick up at Hamble
More Information
Engine Control and Interfacing Navigation
Engine data that can be displayed

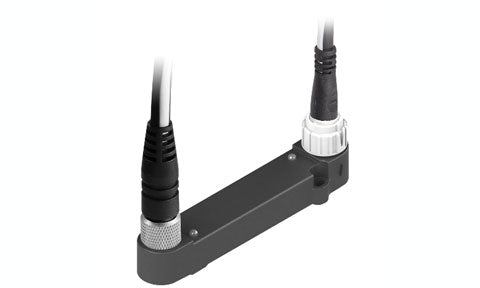

Using the ECI-100, it's possible to connect selected Volvo Penta engine* Electronic Vessel Control (EVC) Systems.
By doing so it is possible to display the following engine data on a connected Raymarine multifunction display, and access full autopilot steering control to an IPS or Aquamatic system.
- Engine Speed (RPM)
- Engine Hours
- Engine Oil Temperature**
- Engine Coolant Temperature**
- Engine Oil Pressure**
- Engine Coolant Pressure**
- Engine Fuel Delivery Pressure**
- Engine Fuel Rate
- Engine Boost Pressure**
- Battery Voltage
- Transmission Oil Pressure**
- Transmission Oil Temperature**
- Fuel Level**
- Boat Speed**
- Power Trim**
- Rudder Angle (only if connected to an IPS System)
- Engine Alarms
- Over Temperature
- Low Oil Pressure
- Low Oil Level
- Low System Voltage
- Low Coolant Level
- Water In Fuel
-
**Only available if Volvo* Sensor is fitted
Connecting your ECI-100
Connection of your ECI-100 to the Volvo Penta engine* EVC System couldn't be simpler. Depending on the age of your engine, and type of installation, Raymarine have provided 2 cabling solutions:
Newer Volvo Penta engine* EVC Systems - with an available multi-link hub
For new and recent Volvo Penta engine* EVC systems, a multi-link hub should be available. This will have 6 connections, 1 of which must be available in order to connect your ECI-100.
For this connection, you will need the Raymarine Cable Link for use with Volvo Penta* Engine (Raymarine Part Number: E70240). This cable is connected between the DeviceNet connector of the ECI-100, and the available socket on the multi-link hub for use with Volvo Penta engines*.
If a Volvo Penta engine* IPS or Aquamatic steering system is fitted, then connecting an EV-2 as shown in the diagram below will give full autopilot steering control.
For engine data only, the connection between ECI-100 and Volvo Penta engine* EVC system is identical (as shown in the diagram below) but fitting the Raymarine EV-2 is not required.
EV-2 is connected to the Raymarine backbone via a SeaTalkng spur cable (white SeaTalkng plug on EV-2 to be used).
Diagram
1. SeaTalkng spur cable between the SeaTalkng backbone and the EV2's SeaTalkng connector.
2. ECI-100 unit
3. STng network power supply (12 V dc)
4. EV-2 - Evolution™ autopilot
5. Raymarine Cable Link for use with Volvo Penta engines* (E70240)
6. System Bus for use with Volvo Penta engines*
7. Multi-Link Hub for use with Volvo Penta engines*
Connecting your ECI-100
Older Volvo Penta engine* EVC Systems - where no multi-link hub is available
For older Volvo Penta engine* EVC systems where no multi-link hub is available, it is necessary to use the E70240 Raymarine Cable Link for use with Volvo Penta* in conjunction with a Y-splitter cable (E70241). This connects into the system as per the diagram.
Connecting the cables as per the diagram below will allow the ECI-100 to interface between the Volvo Penta engine* EVC data bus, and the Raymarine navigation STng bus.
If a Volvo Penta engine* IPS or Aquamatic steering system is fitted, then connecting a Raymarine EV-2 as shown in the diagram below will give full autopilot steering control.
For engine data only, the connection between ECI-100 and Volvo Penta engine* EVC system is identical (as shown in the diagram) but fitting the Raymarine EV-2 is not required.
EV-2 is connected to the Raymarine backbone via a SeaTalkng spur cable (white SeaTalkng plug on EV-2 to be used).
Diagram
1. SeaTalkng spur cable between the SeaTalkng backbone and the EV2's SeaTalkng connector.
2. ECI-100 unit
3. STng network power supply (12 V dc)
4. Raymarine Volvo Penta engine* Y-loom (E70241)
5. EV-2 - Evolution™ Autopilot
6. Raymarine Cable Link (E70240) for use with Volvo Penta engines*
7. System Bus for use with Volvo Penta engines*
Compatible Volvo* Systems
These Volvo Penta engine* EVC systems have the ability to display engine data on Raymarine’s latest generation of multifunction displays using the ECI-100.
What’s more, when an IPS or Aquamatic system is fitted with one of the compatible EVC systems, the ECI-100 enables Raymarine’s Evolution 9-axis sensor and adaptive autopilot full control of drive-by-wire steering without the need for a proprietary autopilot gateway.
Shown below are Volvo Penta* engines which may have a compatible EVC system fitted.
Important: Not all engines have an EVC system fitted as standard. Please check to see if the EVC is fitted, and of the correct type as shown above.
* Volvo and Volvo Penta are trademarks™ and/or registered® trademarks of Volvo Trademark Holding AB. Raymarine is not affiliated with, or endorsed by, Volvo.
