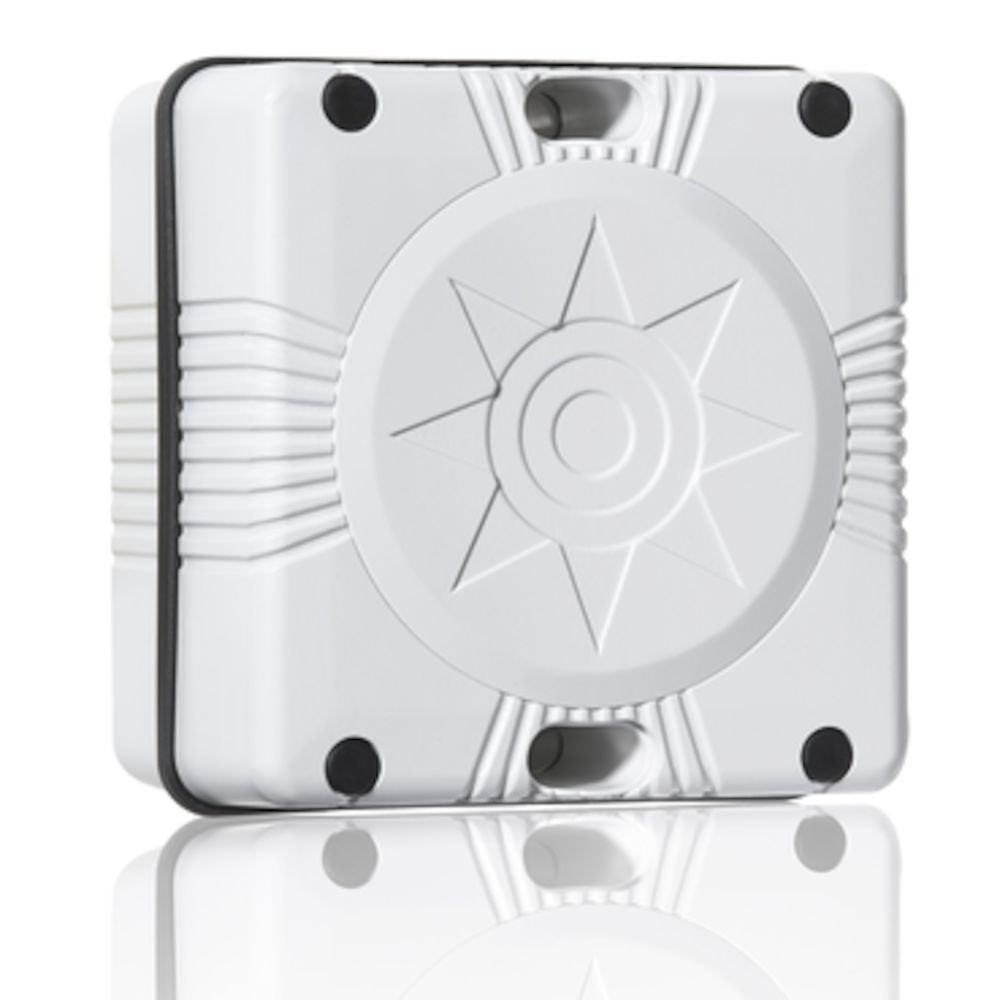

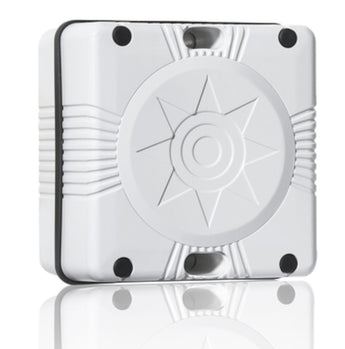

RC42 Rate Compass w/5M SimNet Cable

22090195
The RC42 is an intelligent rate compass that significantly improves the dynamic performance of autopilots and stabilised radar displays. A magnetic fluxgate sensor combined with an integrated solid-state turn sensor delivers +/- 3 degree heading accuracy after automatic calibration, output over SimNet / NMEA 2000 and NMEA 0183. Supplied with a 5.5 m SimNet cable.

Description

The Simrad RC42 is an intelligent rate compass that significantly improves the dynamic performance of autopilots and stabilised radar displays. It combines a magnetic fluxgate sensor, which provides a reliable long-term directional reference, with an integrated solid-state rate-of-turn sensor that enables precise auto-steering even in a seaway. Heading accuracy is +/- 3 degrees after automatic calibration, with roll and pitch sensing across +/- 35 degrees.

The compass transmits calibrated heading, rate-of-turn, magnetic field and status data over SimNet / NMEA 2000 (PGN 127250 and 127251), updating at 20 Hz when selected as the heading source, and also offers an NMEA 0183 heading output. It mounts on deck or a bulkhead close to the vessel's centre of roll and pitch, and is supplied with a 5.5 m (18 ft) SimNet cable and installation accessories. The IP56-rated off-white ABS housing suits typical below-deck mounting positions.

PRODUCT DETAILS

  • Intelligent rate compass for autopilots and stabilised radar displays
  • Magnetic fluxgate sensor with integrated solid-state rate-of-turn sensor
  • Heading accuracy of +/- 3 degrees after automatic calibration
  • Roll and pitch range of +/- 35 degrees
  • SimNet / NMEA 2000 output (PGN 127250 / 127251) plus NMEA 0183
  • Supplied with 5.5 m (18 ft) SimNet cable; IP56 rated
  • RC42 rate compass
  • 5.5 m (18 ft) SimNet cable with connector
  • Installation accessories (mounting plates, screws, plugs)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Simrad AC70 Autopilot Computer for rudder or propeller (i.e. Voith Schneider), for reversible motor or galvanic non-isolated solenoids.

Simrad AC70 Autopilot Computer for rudder or propeller (i.e. Voith Schneider), for reversible motor or galvanic non-isolated solenoids.

General

TypeRate compass with magnetic fluxgate sensor and solid-state rate sensor
Heading accuracy+/- 3 degrees after calibration
Repeatability+/- 1.5 degrees
Roll / pitch range+/- 35 degrees
CalibrationAutomatic
Warranty2 years

Electrical

Supply and interface8 - 16 V via SimNet
Power consumption1.4 W

Connectivity

OutputSimNet / NMEA 2000, PGN 127250 and 127251
NMEA 0183Output $HCHDG (RC42 only)
SimNet network load factor3
SimNet ports1 (input/output)
Cable supplied5.5 m (18 ft) SimNet cable with connector

Environment

Environmental protectionIP56
Operating temperature0 C to +55 C
Storage temperature-30 C to +70 C

Physical

Weight0.4 kg (0.9 lbs)
MaterialOff-white ABS
MountingDeck or bulkhead
Compass safe distance0.5 m (1.7 ft)
