Scanstrut
Scanstrut Aluminium Wedge Mount for Starlink High Performance
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

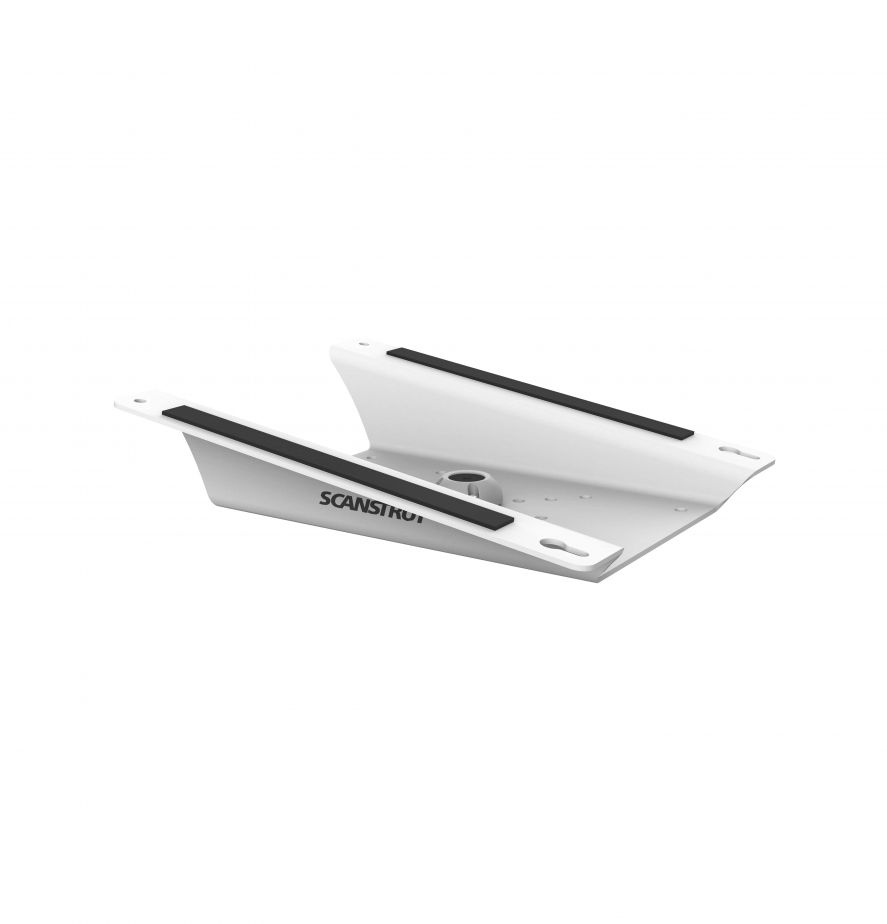

The SC-SL-01 Aluminium 8 degree Wedge Mount is purpose-built for fitting the Starlink Flat High-Performance antenna in the marine environment. The 8 degree angle elevates the dish to an optimal position while keeping the installation compact, making it ideal for deck, roof or transom mounting on both sailing boats and powerboats.
Pre-drilled mounting holes allow the Starlink hardware to fasten directly to the wedge, and an integrated Scanstrut cable seal routes the antenna cable through a fully watertight gland, so there is no need to cut the Starlink connectors and no marine sealant is required. The white finish is applied using the unique Scanstrut four-step marine paint system for lasting corrosion resistance.
As well as a standalone mount, the SC-SL-01 doubles as an adapter plate for the Scanstrut Modular Dual PowerTower range and as a top plate for the SC100 series pole mounts, allowing Starlink to share a single mounting platform with radar and other electronics.
PRODUCT DETAILS
- Mounts a Starlink Flat High-Performance dish at the optimal 8 degree angle
- Use standalone on a roof or deck, or as an adapter plate for the SC100 pole mount and Modular Dual PowerTower ranges
- Pre-drilled holes let the Starlink hardware fasten straight to the wedge with no connector cutting
- Built-in Scanstrut cable seal gives a watertight installation with no marine sealant required
- Constructed from marine-grade aluminium with the Scanstrut 4-step marine paint system
- Aluminium 8 degree wedge mount x1
- Built-in DS30 cable seal (foam seal, DS30 shell, DS30 bungs x2)
- M8 and 1/4in stainless fixing set (hex tops, Nyloc nuts, nylon washers, nut caps, cap head screws)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Aluminium 8 degree wedge mount for Starlink |
| Lean angle | 8 degrees |
Compatibility
| Fits antenna | Starlink Flat High-Performance |
| Also fits | SC100 pole mount range (SC103, SC104); Modular Dual PowerTower range (DPT-R, DPT-R-COMP, DPT-OA, DPT-LB-02) |
Materials
| Construction | Marine-grade aluminium with 4-step marine paint system |
Fixing
| Mounting | Pre-drilled holes; Starlink fastens directly to the wedge (no connector cutting, no marine sealant required) |
| Cable routing | Built-in Scanstrut DS30 cable seal; foam-seal hole 32mm (1 1/4in), cable bung 8.5mm (21/64in) |
Dimensions
| Base size | 426.2 x 340mm (16.78 x 13.39in) |
| Height (low to high edge) | 34.5 - 94.4mm (1.36 - 3.72in) |
No videos available for this product.
No frequently asked questions for this product.
