Scanstrut APT-150-01 Aluminium PowerTower® Scanstrut APT-150-01 Aluminium PowerTower®
Scanstrut APT-150-01 Aluminium PowerTower®

Scanstrut

Scanstrut APT-150-01 Aluminium PowerTower®

£450.00
Tax included. Shipping calculated at checkout.
APT-150-01

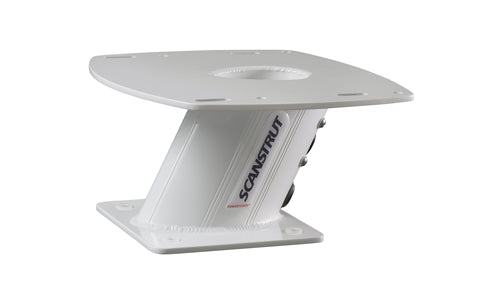

The Scanstrut APT-150-01 is a 150mm (6") aft-leaning aluminium PowerTower for mounting your radar high and clear of the horizon. It fastens directly to the radome using pre-drilled holes, with no need to cut connectors or apply marine sealant. Designed to fit current radars from Garmin, Lowrance, Raymarine and Simrad.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Aluminium PowerTower lifts your radar onto the roof, T-top, flybridge or radar arch of your powerboat, giving the clearest possible view of the horizon for the best radar performance in all conditions. The APT-150-01 stands 150mm (6") high in an aft-leaning configuration.

Constructed from premium marine-grade aluminium and finished with the unique Scanstrut four-step marine paint system, it is built to withstand the harshest conditions at sea. Pre-drilled mounting holes let the radome bolt straight on, so there is no need to cut off the radar's connectors and no marine sealant is required.

A range of accessory light bars and antenna bars can be added to the back of the mount, and an optional base wedge is available to fine-tune the radar pitch.

PRODUCT DETAILS

  • Aft-leaning 25 degree mount for radar radomes
  • Integrated DS-30 waterproof deck seal for clean cable routing
  • Aluminium construction for marine durability
  • Internal or external cable routing options
  • Aluminium PowerTower
  • 4x M6x16mm bolts
  • 4x M4x10mm screws
  • Foam seal
  • Cable grommet
  • Blanking plug
  • 8x M8 nylon insulation washers
  • DS30 deck seal shell and bung set
  • Optional weather seal

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Mount typeAft-leaning radome PowerTower
Lean angle25 degrees
Radome standoff height150mm (5.91")
Deck sealDS-30 Deck Seal included

Dimensions

Base footprint290mm x 280mm (11.42" x 11.02")
Top plate177.8mm x 127mm (7.00" x 5.00")

Fixing

Base hole centres177.8mm x 141.50mm (7.00" x 5.57")
Cable hole-saw size50-52mm (2")
Fixing drill bit8.5mm (21/64")
Deck fasteners4x M8 x 25mm+ (not supplied)

Materials

MaterialAluminium
