Scanstrut

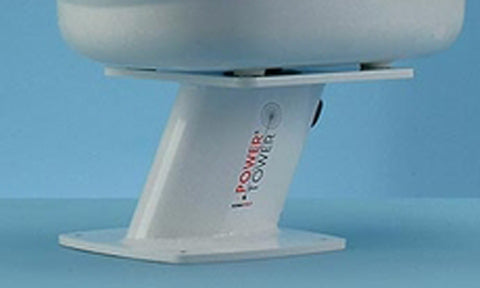

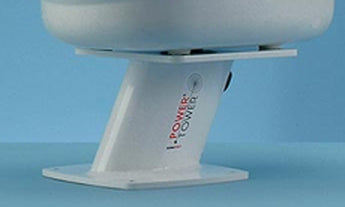

Scanstrut APT6003 Aluminium PowerTower®
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Open Array Aluminium PowerTower lifts your open array radar onto the roof, T-top, flybridge or radar arch of your powerboat, giving the clearest view of the horizon and the best radar performance in all conditions. The APT6003 stands 150mm (6") high in an aft-leaning configuration and is designed for the current open array scanners from the world's leading marine electronics brands.
Constructed from premium marine-grade aluminium and finished with the unique Scanstrut four-step marine paint system, it is built to endure the harshest conditions at sea. Pre-drilled mounting holes let the open array bolt straight on, so there is no need to cut the radar's connectors and no marine sealant is required.
PRODUCT DETAILS
- 25 degree mount for open array radar scanners
- Aluminium construction for marine durability
- Internal or external cable routing options
- Aluminium PowerTower
- 4x M6x16mm bolts
- 2x cable grommet
- Blanking plug
- Foam seal
- 8x M8 nylon insulator washers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Open array radar PowerTower |
| Lean angle | 25 degrees |
Dimensions
| Overall height | 243mm (9.57") |
| Base footprint | 201mm x 201mm (7.91" x 7.91") |
| Top plate | 210mm x 210mm (8.27" x 8.27") |
Fixing
| Top plate hole centres | 150mm x 140mm (5.91" x 5.51") |
| Cable hole-saw size | 50-52mm (2") |
| Fixing drill bit | 8.5mm (21/64") |
| Deck fasteners | 4x M8 x 25mm+ (not supplied) |
Materials
| Material | Aluminium |
No videos available for this product.
No frequently asked questions for this product.
