Scanstrut DS16-P Mini Cable Seal - Plastic - Black Scanstrut DS16-P Mini Cable Seal - Plastic - Black
Scanstrut DS16-P Mini Cable Seal - Plastic - Black

Scanstrut

Scanstrut DS16-P Mini Cable Seal - Plastic - Black

£25.00
Tax included. Shipping calculated at checkout.
DS16-P-BLK
The Scanstrut DS16 Mini in black is a vertical entry cable seal for cables and connectors up to around 16mm. Moulded in black high-impact plastic to suit dark trim, it carries instrument, network and display leads through a deck or bulkhead and seals to IP68 watertight. Fit it without removing the connector, with no sealant.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

This black version of the Scanstrut DS16 Mini handles the same mid-size cables and connectors up to roughly 16mm as the grey model, but finishes them to match black hardtops, mounts and helm trim. It suits NMEA network drops, transducer leads and display cables alike.

The low-profile dome is moulded from tough black high-impact plastic, and pre-drilled, blank and split bungs are supplied so one seal adapts across a range of cable diameters. Captive nuts make assembly quick and easy to repeat on future installs.

You route the cable without removing its connector and never apply sealant, so a watertight IP68 entry that blends with your black equipment is achieved in minutes.

PRODUCT DETAILS

  • Watertight cable seal for routing a single cable through a deck or panel
  • Suits cable diameters from 2 to 8 mm (0.08-0.31 in)
  • Black finish to blend with dark decks and panels
  • 39 mm flange with a 36.5 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs

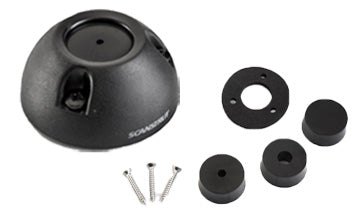

  • Cable seal shell x1 (black)
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 4 x 16 self-tapping screws x3
  • M3 x 10 black bolts x3
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range2-8 mm (0.08-0.31 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter39 mm (1.53 in)
Bore / cable opening diameter16 mm (0.63 in)
Height19 mm (0.75 in)

Fixing

Cut-out diameter36.5 mm (1.44 in)
Fixings3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied)
Pilot hole2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material

Materials

Trim materialPlastic
FinishBlack
Sealing bungs4 x graduated bungs
