Scanstrut DS16-P Mini Cable Seal - Plastic - Grey
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut DS16 Mini steps up from the Micro to handle mid-size cables and connectors up to roughly 16mm, covering the bulk of marine electronics wiring such as NMEA network drops, transducer leads and display cables. It is the world's number one choice for getting these runs below decks neatly.

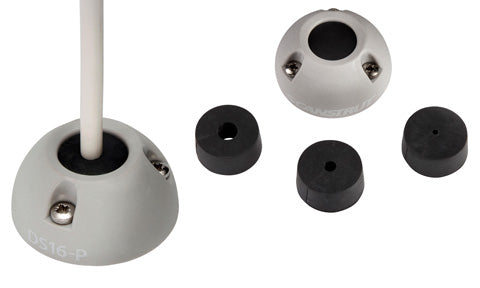

The grey low-profile dome is moulded in ultra-strong impact-resistant plastic, and the pre-drilled, blank and split bungs included let a single seal adapt to several cable diameters within its range. Captive nuts give fast, repeatable assembly.
Crucially you fit it without removing the cable connector and apply no sealant to the bungs, so a reliable IP68 waterproof entry goes in quickly and cleanly.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- Suits cable diameters from 2 to 8 mm (0.08-0.31 in)
- 39 mm flange with a 36.5 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Supplied with stainless fixings and gasket
- Cable seal shell x1
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 4 x 16 self-tapping screws x3
- M3 x 10 bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 2-8 mm (0.08-0.31 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 39 mm (1.53 in) |
| Bore / cable opening diameter | 16 mm (0.63 in) |
| Height | 19 mm (0.75 in) |
Fixing
| Cut-out diameter | 36.5 mm (1.44 in) |
| Fixings | 3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied) |
| Pilot hole | 2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material |
Materials
| Trim material | Plastic |
| Sealing bungs | 4 x graduated bungs |
