Scanstrut DS21A-P Small Cable Seal - Plastic - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This black DS21A Small handles the same single larger cable or connector up to roughly 21mm as the grey model, finishing heavier runs like power feeds and radar cables to suit black hardtops, arches and helm trim.
The low-profile dome is moulded from tough black high-impact plastic, and the pre-drilled, blank and split bungs supplied let one seal cope with a range of diameters up to its limit. Captive nuts keep assembly quick and repeatable.
You route the cable without removing its connector and apply no sealant, so a watertight IP68 entry for a single heavy lead that blends with your black equipment goes in within minutes.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- Suits cable diameters from 4 to 9 mm (0.17-0.31 in)
- Black finish to blend with dark decks and panels
- 49 mm flange with a 45.7 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs

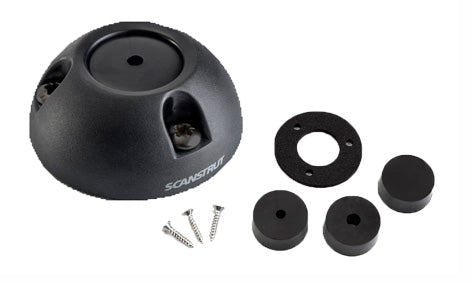

- Cable seal shell x1 (black)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x3
- M4 x 10 black bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 4-9 mm (0.17-0.31 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 49 mm (1.93 in) |
| Bore / cable opening diameter | 21 mm (0.83 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 45.7 mm (1.8 in) |
| Fixings | 3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | Plastic |
| Finish | Black |
| Sealing bungs | 4 x graduated bungs |
