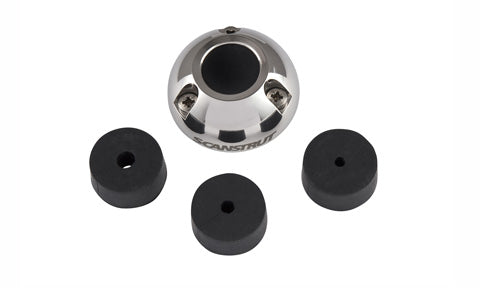

Scanstrut DS21B-S Small Cable Seal - Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DS21B-S brings premium 316 stainless steel to the twin-cable Small seal, pairing a polished marine-grade finish with the strength to take an exposed deck or radar-arch position in its stride. It is the fast, easy and 100% waterproof route for two cables through one vertical entry point.
The 316 housing resists salt-water corrosion and gives a flush, hardware-grade look alongside other stainless fittings. Captive nuts keep assembly quick and dependable across repeat installations, while the included bung set tunes the single opening to each cable run. Nothing on the bungs needs sealant, so the join stays clean.
PRODUCT DETAILS
- Watertight cable seal for routing a single larger cable through a deck or panel
- 316 stainless steel trim for a premium, corrosion-resistant finish
- Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
- 49 mm flange with a 45.7 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Cable seal shell x1 (316 stainless steel)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x3
- M4 x 10 bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 9-14 mm (0.35-0.55 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 49 mm (1.93 in) |
| Bore / cable opening diameter | 21 mm (0.83 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 45.7 mm (1.8 in) |
| Fixings | 3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | 316 stainless steel |
| Sealing bungs | 4 x graduated bungs |
