Scanstrut DS30-P Medium Cable Seal - Plastic - Grey Scanstrut DS30-P Medium Cable Seal - Plastic - Grey
Scanstrut DS30-P Medium Cable Seal - Plastic - Grey

Scanstrut

Scanstrut DS30-P Medium Cable Seal - Plastic - Grey

£32.50
Tax included. Shipping calculated at checkout.
DS30-P

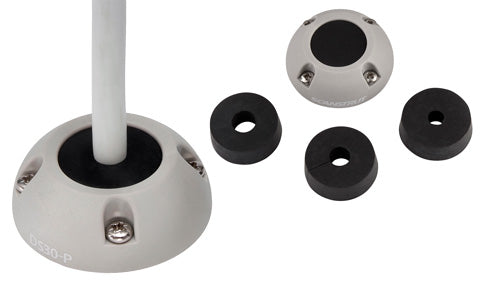

The DS30-P is the Medium vertical entry cable seal in grey high-impact plastic, sealing cables and connectors up to around 30mm through a deck or bulkhead. It gives an IP68 watertight finish and fits without removing the connector. Pre-drilled, blank and split bungs are included to suit a range of cable diameters, with no messy sealant.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The DS30-P steps up to the Medium size, taking cables and pre-fitted connectors up to roughly 30mm so larger plotter, radar and instrument runs pass through a single vertical entry without being cut. It is the fast, easy and 100% waterproof way to bring heavier cabling below.

Moulded in grey high-impact plastic with a low-profile, impact-resistant dome, it blends with light decks and consoles while standing up to knocks and sun. Captive nuts make for quick, repeatable assembly, and the supplied pre-drilled, blank and split bungs adapt the Medium opening to whatever diameter you are routing. Sealant stays in the locker.

PRODUCT DETAILS

  • Watertight cable seal for routing a single large cable through a deck or panel
  • Suits cable diameters from 9 to 14 mm (0.35-0.55 in)
  • 59 mm flange with a 56 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 6 x 16 self-tapping screws x4
  • M4 x 10 bolt x1
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range9-14 mm (0.35-0.55 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter59 mm (2.32 in)
Bore / cable opening diameter30 mm (1.18 in)
Height20.5 mm (0.81 in)

Fixing

Cut-out diameter56 mm (2.2 in)
Fixings4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim materialPlastic
Sealing bungs4 x graduated bungs
