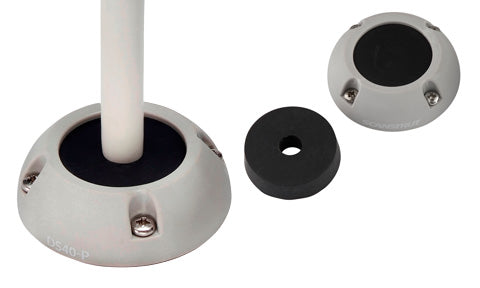

Scanstrut DS40-P Large Cable Seal - Plastic - Grey
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The DS40-P is the Large size in the range, taking cables and pre-fitted connectors up to roughly 40mm so the bulkiest plotter, radar and network runs pass through one vertical entry without being cut down. It is the fast, easy and 100% waterproof way to bring heavy-gauge cabling below.
Moulded in grey high-impact plastic, the wider low-profile dome keeps a clean line on light decks and consoles while resisting impact and UV across seasons. Captive nuts make assembly quick and repeatable, and the supplied pre-drilled, blank and split bungs adapt the Large opening to whatever diameter you are landing. There is no sealant on the bungs, so the install stays clean.
PRODUCT DETAILS
- Watertight cable seal for routing a single large cable through a deck or panel
- Suits cable diameters from 12 to 15 mm (0.4-0.59 in)
- 69 mm flange with a 66 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Supplied with stainless fixings and gasket
- Cable seal shell x1
- Base x1
- Gasket x1
- Sealing bungs x2
- No. 6 x 16 self-tapping screws x4
- M4 x 10 bolt x1
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 12-15 mm (0.4-0.59 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 69 mm (2.72 in) |
| Bore / cable opening diameter | 40 mm (1.57 in) |
| Height | 21.7 mm (0.85 in) |
Fixing
| Cut-out diameter | 66 mm (2.6 in) |
| Fixings | 4 x No. 6 x 16 self-tapping screws and 1 x M4 x 10 bolt (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | Plastic |
| Sealing bungs | 2 x graduated bungs |
