Scanstrut DS6-P Micro Cable Seal - Plastic - Black
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This black edition of the Scanstrut DS6 Micro brings the smallest seal in the world's leading vertical cable entry range to dark decks, hardtops and helm pods where a discreet finish matters. It is sized for thin sensor, antenna and instrument leads up to roughly 6mm.
The low-profile dome is moulded from tough black high-impact plastic that shrugs off knocks, and pre-drilled, blank and split bungs are supplied so one seal copes with a range of slim cable diameters. Captive nuts keep assembly fast and repeatable.
You install it without removing the connector and without sealant, so a watertight IP68 entry that matches your black hardware is achieved in minutes.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- Suits cable diameters from 2 to 6 mm (0.08-0.24 in)
- Black finish to blend with dark decks and panels
- Compact 30 mm flange with a 27 mm cut-out
- Six graduated bungs to match the exact cable size
- No messy sealant needed on the bungs

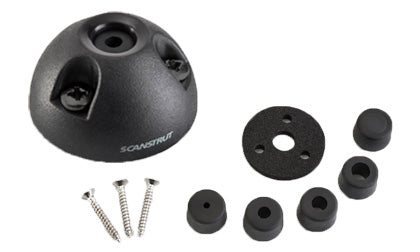

- Cable seal shell x1 (black)
- Base x1
- Gasket x1
- Sealing bungs x6 (blank, 2, 3, 4, 5 and 6 mm)
- No. 4 x 16 self-tapping screws x3
- M3 x 10 black bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 2-6 mm (0.08-0.24 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 30 mm (1.18 in) |
| Bore / cable opening diameter | 6 mm (0.24 in) |
| Height | 17 mm (0.67 in) |
Fixing
| Cut-out diameter | 27.0 mm (1.06 in) |
| Fixings | 3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied) |
| Pilot hole | 2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material |
Materials
| Trim material | Plastic |
| Finish | Black |
| Sealing bungs | 6 x graduated bungs (blank, 2, 3, 4, 5, 6 mm) |
