Scanstrut DS6-P Micro Cable Seal - Plastic - Grey Scanstrut DS6-P Micro Cable Seal - Plastic - Grey
Scanstrut DS6-P Micro Cable Seal - Plastic - Grey

Scanstrut

Scanstrut DS6-P Micro Cable Seal - Plastic - Grey

£17.50
Tax included. Shipping calculated at checkout.
DS6-P

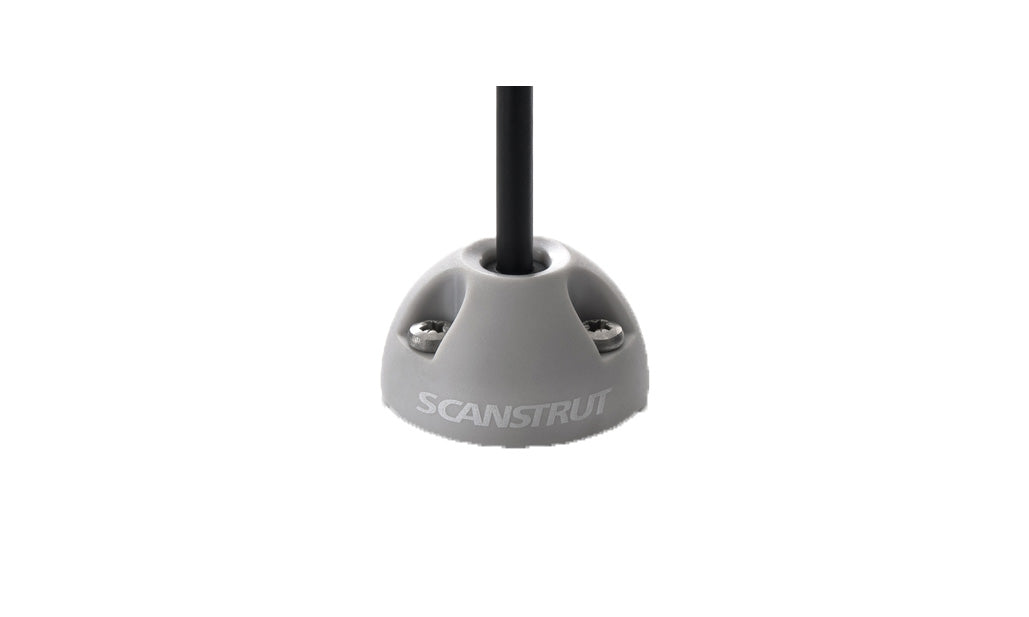

The Scanstrut DS6 Micro is a vertical entry cable seal for the smallest cables and connectors up to around 6mm. Moulded in grey high-impact plastic, it routes a cable through a deck or bulkhead and seals it to IP68 watertight. You fit it without removing the cable connector, and there is no messy sealant to apply.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Scanstrut DS6 Micro is the most compact seal in the world's number one vertical cable entry range, built around small cables and connectors up to roughly 6mm. It is the answer for routing thin sensor, antenna and instrument leads cleanly through a deck or bulkhead without drilling oversized holes.

The low-profile grey plastic dome is ultra-strong and impact-resistant, while pre-drilled, blank and split bungs are included so a single seal suits a range of slim cable diameters. Captive nuts make assembly quick and allow reliable repeat installations.

Because you fit it without removing the connector and never touch sealant, a fully waterproof IP68 entry is achieved in minutes rather than hours.

PRODUCT DETAILS

  • Watertight cable seal for routing a single cable through a deck or panel
  • Suits cable diameters from 2 to 6 mm (0.08-0.24 in)
  • Compact 30 mm flange with a 27 mm cut-out
  • Six graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x6 (blank, 2, 3, 4, 5 and 6 mm)
  • No. 4 x 16 self-tapping screws x3
  • M3 x 10 bolts x3
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range2-6 mm (0.08-0.24 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter30 mm (1.18 in)
Bore / cable opening diameter6 mm (0.24 in)
Height17 mm (0.67 in)

Fixing

Cut-out diameter27.0 mm (1.06 in)
Fixings3 x No. 4 x 16 self-tapping screws and 3 x M3 x 10 bolts (supplied)
Pilot hole2 mm (5/64 in) soft material, 2.5 mm (3/32 in) hard material

Materials

Trim materialPlastic
Sealing bungs6 x graduated bungs (blank, 2, 3, 4, 5, 6 mm)
