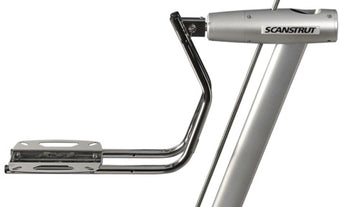

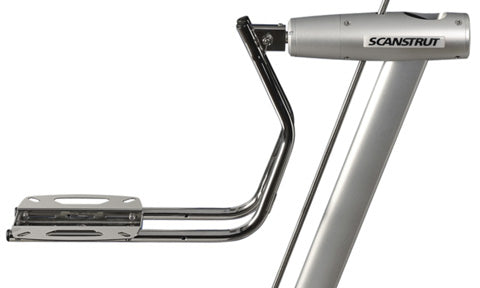

Scanstrut LMB-A2 Self Levelling Radar Mount – Backstay
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Scanstrut LMB-A2 is a self-levelling backstay radar mount that keeps your radar steady and level with the horizon as the boat heels under sail or rolls offshore. A fine-tuned damping system reacts to changes in heel angle, holding the radome horizontal so it delivers a clear, dependable picture in demanding conditions.
This aft-leaning version mounts on the backstay and stands 2.6m (8'6") high, raising the radar above crew and deck gear while keeping the dome clear of obstruction and interference. The LMB-A2 is configured to carry the heavier Furuno domes.
Constructed around a machined aluminium damping chamber and a 316 stainless steel radar cradle, it is entirely maintenance-free and requires no power. It is designed to fit the most up-to-date radars from Furuno.
PRODUCT DETAILS
- Self-levelling design keeps the radar scanner horizontal as the yacht heels (plus or minus 8 degrees)
- Mounts a single radome to the backstay, clear of the deck and rigging
- Fits backstay cables from 7mm to 14mm diameter
- Supplied with a mounting pole in two 1.3M sections with a joiner
- Can be deck, transom or chainplate mounted using the optional chainplate adapter
- Optional 0.65M and 1.3M pole extensions available
- GPS antenna can be added using the LM-GPS bracket
- Self-levelling backstay radar mount assembly
- Mounting pole (2 x 1.3M lengths with joiner piece)
- Backstay clamp components
- M8 and M6 stainless steel fixings, washers, Nyloc nuts and spring washers
- M8 castle nut and split pin
- M8 thumbscrews
- Nylon spacers, shoulders and washers
- Threadlock
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Mount type | Backstay-mounted self-levelling radar mount |
| Self-levelling range | Plus or minus 8 degrees |
| Radar capacity | Single radome (GPS antenna can be added using part LM-GPS) |
Dimensions
| Mounting pole length | 2600mm / 8'6" (supplied as 2 x 1.3M lengths with a joiner piece) |
| Base footprint | 30mm (1.2") x 43.5mm (1.5") |
| Deck mounting hole centres | 112 - 148mm (4.4" - 5.8") |
| Radar scanner standoff | 20 - 50mm (0.8" - 2.0") |
Fixing
| Base fixing holes | 2 x diameter 8mm |
| Backstay cable diameter | 7mm to 14mm (0.27" to 0.55") |
Compatibility
| Optional pole extensions | LMB-EXTSHORT (0.65M), LMB-EXTLONG (1.3M) |
| Optional accessories | Chainplate adapter for transom or chainplate mounting; LM-GPS GPS antenna bracket |
| Mounting positions | Deck mounted, transom mounted or chainplate mounted |
